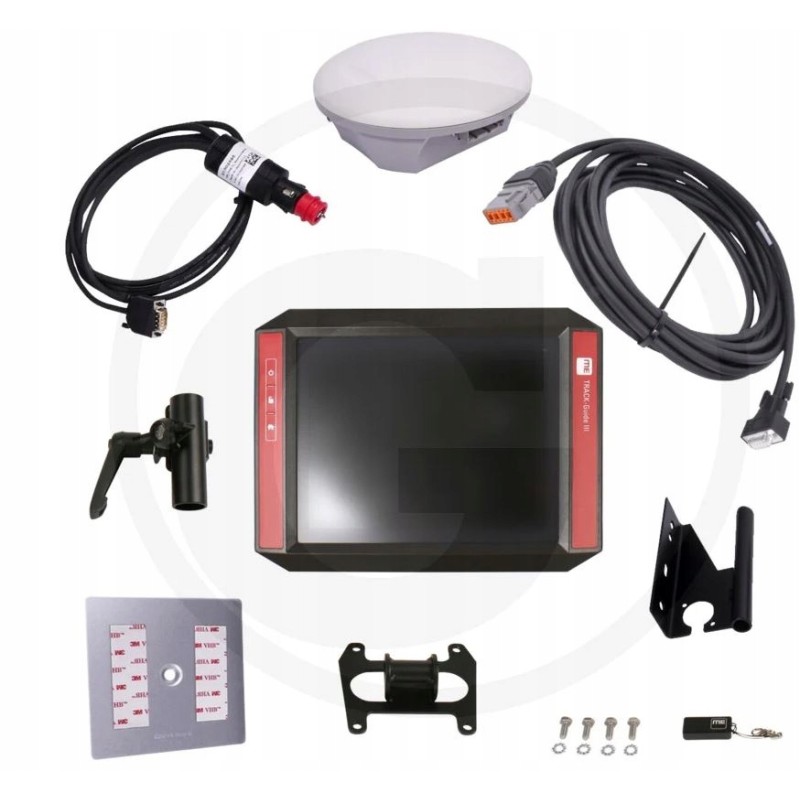

Track Guide III Ag 200 parallel driving system

MüllerElektronik Track Guide III AG 200 with the ISO-UT application

More than just a parallel driving system!

TRACK-Guide III is the latest generation parallel driving system. Equipped with an 8-inch display and a capacitive touch screen, it guarantees both a very good view and simple operation. The integrated light bar can be changed by simply moving it to SECTION-View mode. TRACK-Guide III can be expanded in many ways, including automatic steering or a full ISOBUS terminal with job processing and automatic section control.

Advantages:

• efficient parallel driving system

• solid 8-inch touch display

• intuitive operation

• can be expanded to automatic steering

• adapted to ISOBUS

Device data:

• solid terminal compatible with ISOBUS

• 8” TFT color display with touch screen

• operating temperature from -20° to + 70°C

• USB connector for memory card

• 1 camera input

• integrated ISOBUS job computer (tractor ECU)

• managing device settings (day/night brightness, volume...)

AG 200:

High satellite availability is possible thanks to multi-GNSS tracking. In addition to the American GPS system and the Russian GLONASS system, the receiver also uses the European Galileo satellite navigation system and the Chinese BeiDou system to determine its position. This means that even in difficult situations, more GNSS satellites are available, significantly increasing signal stability. With free satellite correction signals EGNOS, WAAS, GAGAN or MSAS, the AG-200 is ideal for agricultural use. With these free correction signals, the receiver achieves a trace-to-track accuracy of 15 to 20 cm. However, it can also work in regions that are not covered by the satellite correction signals mentioned above. Optionally, the receiver can work with the Trimble RTX correction signal, available worldwide.

TRACK-Leader parallel driving software:

• 2D or 3D view with zoom option

• schematic representation of the device with working sections

• display of the GPS signal quality

• SECTION-View, color representation of the sections to be switched

• colored representation of the processed area, overlaps and gaps

• automatic calculation of the area after crossing the field

• display of limits

• graphical representation of the ideal driving line

• clearly, graphical representation of deviation from the perfect line

• with red and green dots, arrows or centimeters

• 9 different driving modes: Parallel AB, Parallel Multi AB, Parallel A +, Smooth Contour, Identical Contour, Adaptive Contour, Multi-Contour, Headland, Circle

• work with beds (skipping paths and subsequent processing to speed up work)

• possibility remembering obstacles with an audio warning before reaching an obstacle

• saving a field with boundary lines and processed surfaces

• loading saved fields to continue work you started

• setting reference points for precise positioning of stored data

• TRACK-Guide Desktop computer software for further use of data on a computer

• data transfer to a computer via USB

TRACK -Guide III is not only a parallel driving device, but also a fully functional ISOBUS terminal.

Machine Control Terminal (ISOBUS)

After updating to the ISOBUS software, any ISOBUS machine can be controlled via using the terminal. This allows you to avoid additional terminals. Connection cable 50631322541 is required for connection to the 9-pin ISO-Incab socket.
