Elsor speedometer with hectometer

Elsor speedometer with hectaremeter for agricultural machines MIZAR number: 62484

Elsor speedometer with hectaremeter

This device is used to control operating parameters such as:

- driving speed< p>

- rotational speed of the PTO shaft

- distance traveled

- measurement of the area where agrotechnical treatment is performed

The design of the device allows for recording measurements independently for 4 different fields and the total worked area, it also has non-volatile memory, so the measurement data is not deleted even after disconnecting the device from the power supply.

It has a large backlit display, also readable in bright sunlight.

Dimensions:

Device dimensions: 190x90x50

Power cable 90 cm long

Sensor cables approx. 3.5 meters long.< p>

The speed measurement set uses inductive sensors (does not require a magnet for proper operation, range - up to 4mm) with a mounting diameter of 12mm.

A Polish-made device, made of high-quality components.

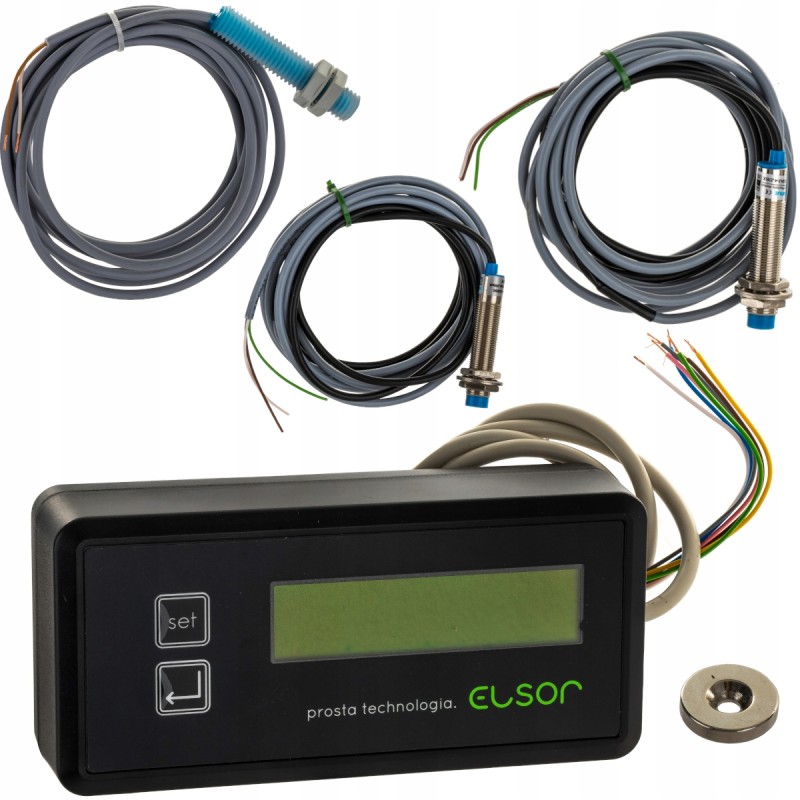

The set includes:

Speedometer (control and counter system)

Inductive sensor x2

Reed sensor x1

User manual

Description of cable connections:

yellow - 12V power supply

gray - ground

white - to white from the sensor

brown - to brown from the sensor

green - to green from the sensor

MIZAR number: 62484
