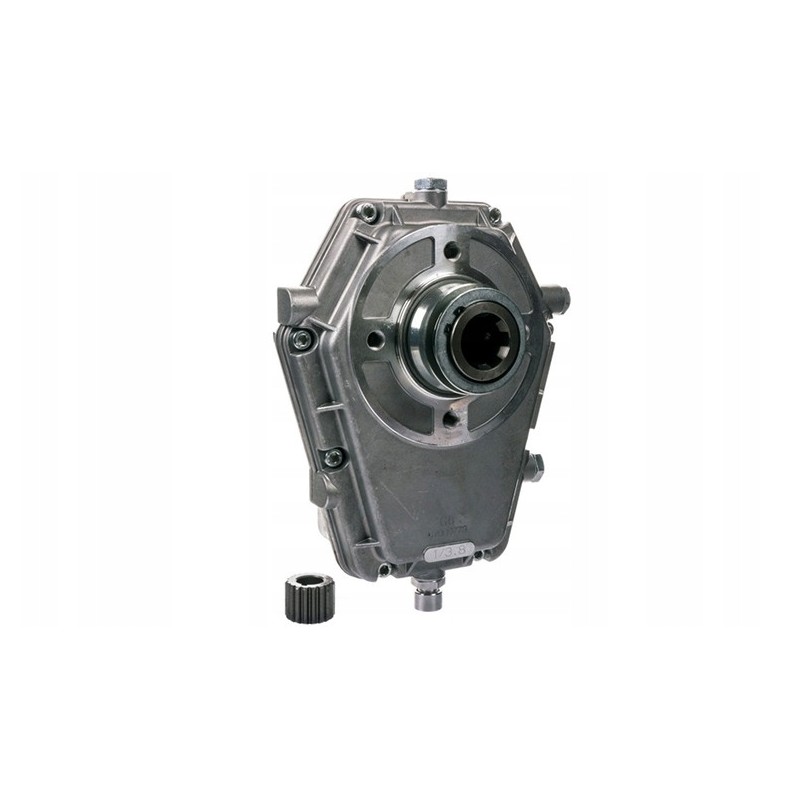

Multiplier PTO gear 1 3 8 HDS forest

Multiplier 1:3.8 for pumps of group 2 and 3 20kW MIZAR number: 49022

Multiplier for snap-on hydraulic pumps with PTO output.

If you need an efficient hydraulic system and the factory system in Your tractor can't handle it, we have a solution for you - a multiplier. Gearbox with European mounting for hydraulic pumps of groups II and III. It is ideal for small and medium-sized forestry and construction machines and tractors, including C-330, C-360, C-385, ZETOR, MF and others with a PTO output.

The gearbox is mounted on the PTO shaft using a latch, this solution means that it can be mounted or dismantled quite quickly if it turns out that we need a PTO shaft for another machine.

Possibility of installation in tractors and machines with PTO shaft drive.

The efficiency of the system depends on the pump used (pumps are available separately).

Possible use as a drive for the feed pump: TUR, hydraulic weeder, drilling rig and other machines requiring higher efficiency than the factory system offers tractor.

Technical data of the transmission:

Gear ratio: 1:3.8

PTO shaft 1 3/8'

Possibility to connect the PTO shaft to an additional machine.

Requires filling with gear oil.

It has a viewfinder to check the gear oil level.

Possibility to work with the pumps of the second machine and third group.

Complete with sleeve of the second group

MIZAR number: 49022
