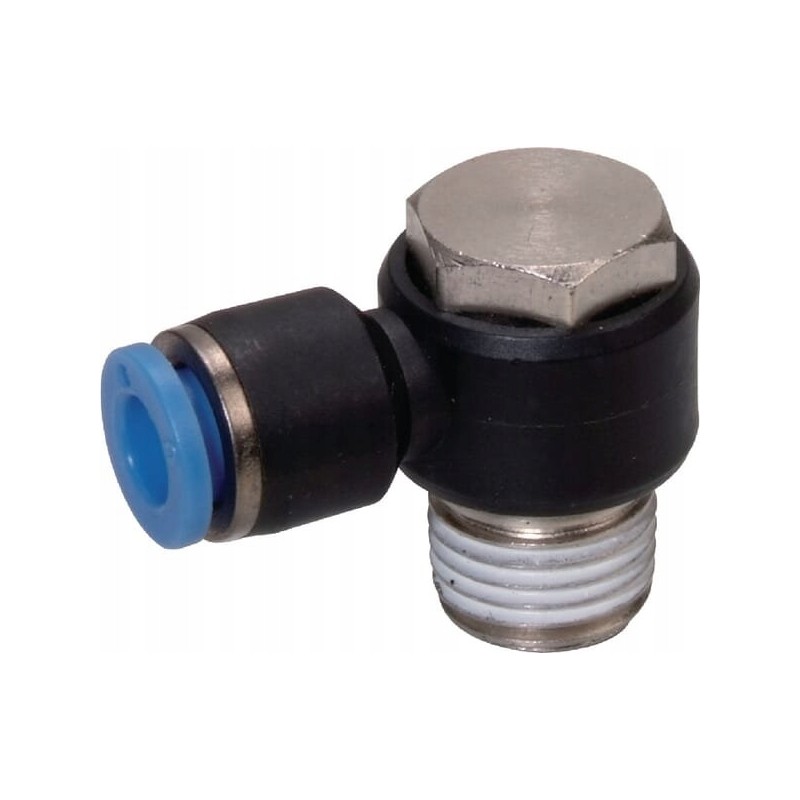

Plug connection l 81 8

Plug-in fitting L 8×1/8' Parameters

Part number: BCS818P

Unit: piece

Manufacturer: Kramp

EAN: 5700036886276

Shape: Elbow - 2 sides of connection

Connector type no. 1: Quick connector

Connector type no. 1 - male/female: Female

Connector No. 1 diameter: 7 mm

Connector No. 1 thread diameter: 1/8 inch

Connector No. 1 thread length [L3]: 7.5 mm

Angle: 90 °

Material: Plastic

Minimum working pressure: 1 BAR

Maximum working pressure: 10 BAR

Pipe side seal material: Nitrile rubber [NBR]

Connection #1 wrench size [SW]: 10 mm

Connection #1 thread type: R

Connector No. 2 Type: Banjo

Connector No. 2 Type - Male/Female: Male

Connection No. 2 Diameter: 7 mm

Thread Diameter connector no. 2: 1/8 inch

Number of turns per inch of thread of connector no. 2: 28

Type of thread of connector no. 2: Inch

Connection: R 1 /8

Dimension from the axis of the joint to the end of the next joint [L1]

25.6 mm

Dimension from the axis of joint no. 2 to the end of the next joint

25.6 mm
