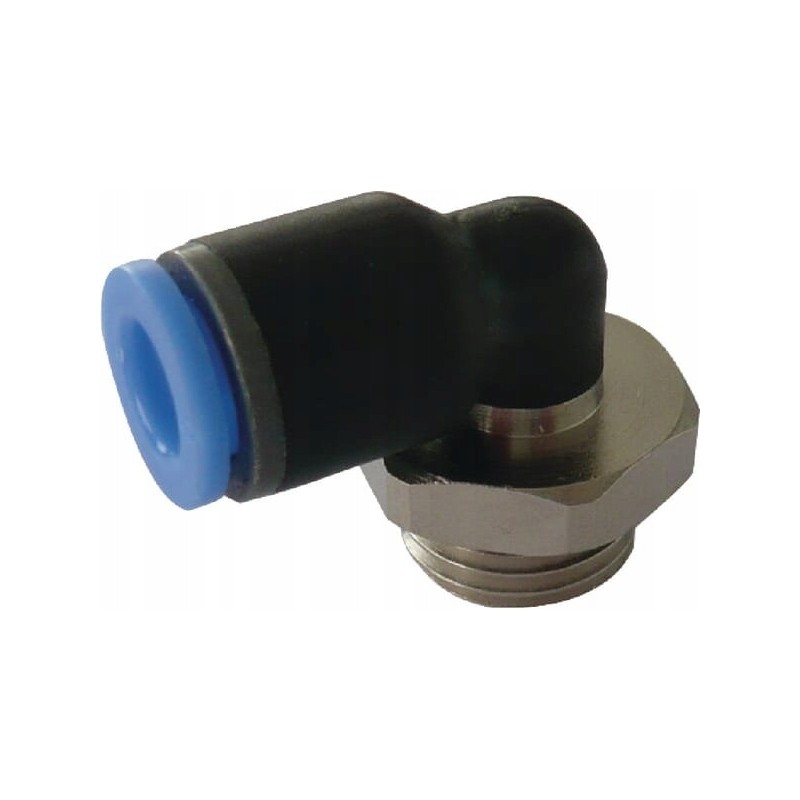

Plug connection l 101 4 ecs1014p

Plug-in fitting L 10×1/4' Parameters

Part number: ECS1014P

Unit: piece

Manufacturer: Kramp

EAN: 8716106819287

Shape: Elbow - 2 sides

Connection type: Push-in

Connection type no. 2: Thread

Connection type no. 2 - male/female: Male

Connector No. 2 thread diameter: 1/4 inch

Connector No. 2 thread length [L3]: 6.5 mm

Wrench size for connector no. 2 [SW]: 17 mm

Pipe diameter: 10 mm

Inner diameter: 8 mm

Material: Plastic

Minimum working pressure: 1 BAR

Maximum working pressure: 10 BAR

Seal material: Nitrile rubber [NBR]

Dimension from axis of the connector to the bottom of the next connector [L2]

17.8 mm

Dimension from the axis of connector no. 2 to the end of the next connector [L1]

26.9 mm
