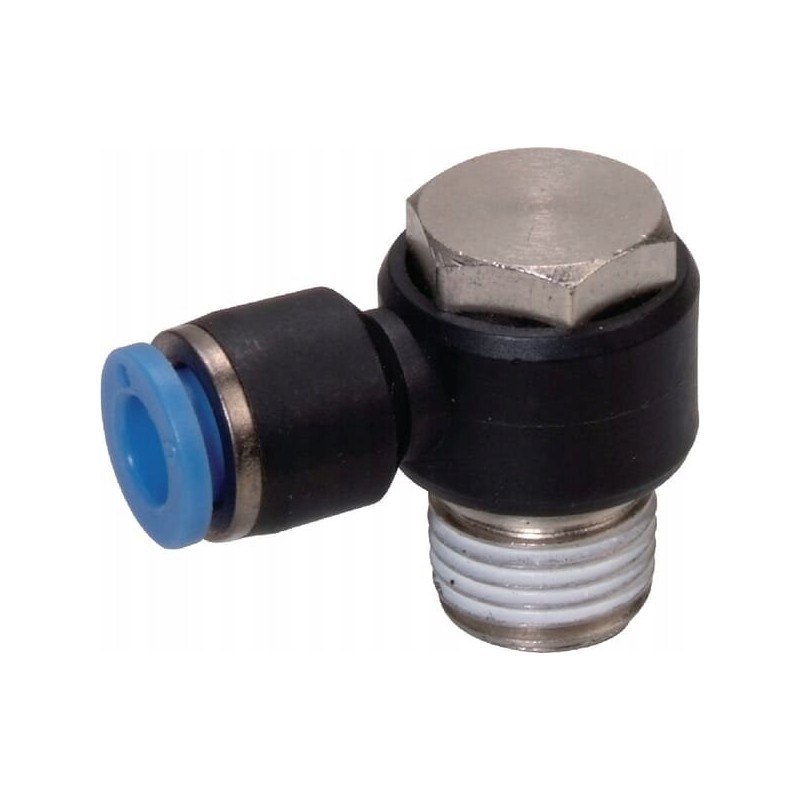

Plug-in fitting L 12×1/2' Parameters
Part number: BCS1212P
Unit: piece
Manufacturer: Kramp
EAN: 5700036886061
Shape: Elbow - 2 sides connection
Connector type no. 1: Quick connector
Connector type no. 1 - male/female: Female
Connector no. 1 diameter: 10 mm
Thread diameter of connector No. 1: 1/2 inch
Thread length of connector No. 1 [L3]: 13.5 mm
Angle: 90 °
Material: Plastic
Working pressure min.: 1 BAR
Working pressure max.: 10 BAR
Pipe Side Seal Material: Nitrile Rubber [NBR]
Coupling #1 Wrench Size [SW]: 24mm
Coupling #1 Thread Type: R
Join #2 Type: Banjo
Coupling #2 Type - Male/Female : Male
No.2 Connector Thread Diameter: 10mm
No.2 Connector Thread Diameter: 1/2 inch
No.2 Connector Thread Type: Inch
Dimension from the axis of the joint to the end of the next joint [L1]
36.6mm
Dimension from the axis of joint no. 2 to the end of the next joint 36.6mm
