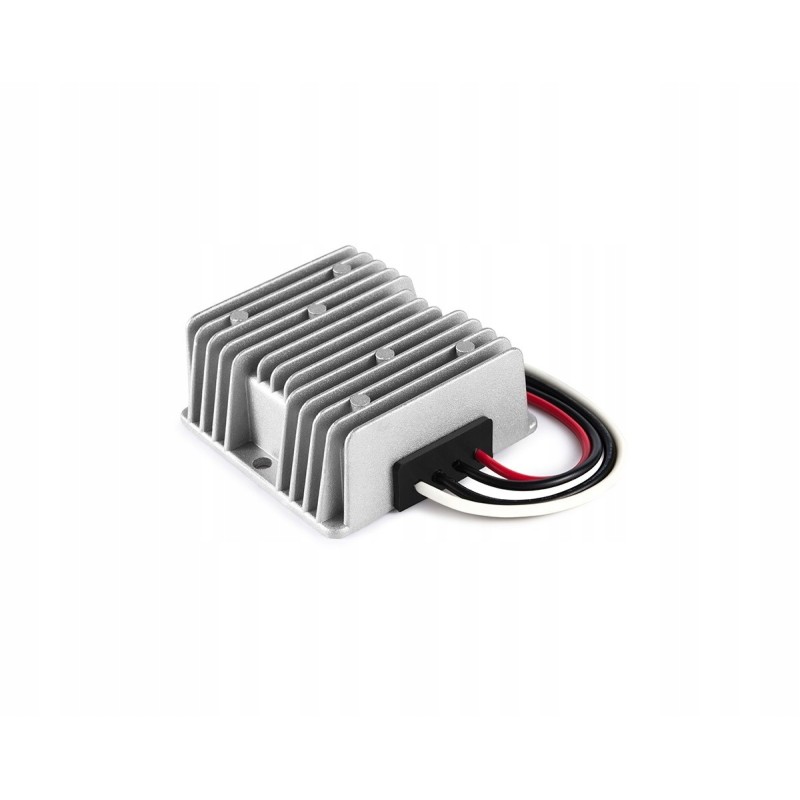

Converter 12 24v 11 35v to 5v 20a step down

Reliable step down converter from 12/24V to 5V 20A 100W, input voltage range for correct, stable operation is 11-35V, energy efficiency 95%

tightly insulated housing - IP68, additionally distributes heat very well solid mounting eyes enabling installation in any place in the car or device high-quality copper connection cables

Reliability in all conditions NTIinnovations converters operate failure-free in the most difficult conditions, exposed to severe environmental factors.

Thanks to full insulation in the IP68 tightness class, the converter can operate in highly dusty and humid conditions.

A wide range of operating temperatures guarantees correct operation in high sunlight, poor ventilation, in tight installation places, in engine compartments, etc.

Proven not only by the industry, NTIinnovations provides specialized electronic components to customers from various industries.

NTIinnovations converters operate successfully in all types of machines and commercial vehicles: from forklifts, through passenger cars, trucks, bodies, construction machines, to campers, boats, yachts...

They are also suitable for specialized industrial applications, e.g. in the chemical industry, in environments with an increased risk of fire and other demanding applications.

Appreciated by professionals and electronics enthusiasts. B2B cooperation with NTIinnovations is appreciated by professionals: from manufacturing companies to which NTIinnovations directly supplies components. , through authorized and independent services, to electronics engineers implementing individual projects.

High quality construction and ease of connection make NTIinnovations converters ideal for enthusiasts who build their own projects that require high-quality power components and certainty of voltage parameters.

Many times in our career, we have heard in conversations with clients that we provide the best quality converters on a national scale, that clients value our approach to cooperation and that thanks to cooperation with us, we managed to deliver an important project on which the competition gave up.

Cooperation with NTIinnovations means certainty of cyclical deliveries, high availability of large quantities of goods for unplanned orders, as well as short waiting time in the event of lack of stock.

Perfect spare parts. Variety of input and output voltages and permissible loads, high-quality materials, compact mechanical structure and exceptional ease of installation allows NTIinnovations converters to also be used as spare parts in a wide range of machines.

Our customers successfully replace parts that are no longer produced or are difficult to obtain with modern NTIinnovations converters.

If an unplanned failure occurs in the circuit, NTIinnovations converters will protect the functional part of the system.

Numerous protections also protect the converter itself, as well as the electronics on the input side and at the converter output.

Accurate, energy-saving and efficient. The output voltage of NTIinnovations converters varies within a very small range, regardless of changes in external factors and system parameters.

The accuracy of the output voltage is no worse than 1.5%, and its changes depending on changes in the input voltage, load changes and temperature changes are negligible in typical applications.

The high energy efficiency of the converter reaches 95%, while the minimum no-load current of 0.1A guarantees low own losses.

Technical data: Model: B20-1224-05

Type of converter: DC/DC

Voltage change: Step down (lowering voltage)

Typical input voltages [V]: 12/24

Minimum input voltage [V]: 11

Maximum input voltage [V]: 35

Output voltage [V]: 5

Output voltage ripple [mV pp]: 50

Voltage accuracy output [%]: 1.5

Maximum output current [A]: 20

Recommended minimum current consumption [A]: 0.5

Maximum load power [W]: 100

Recommended minimum load power [W]: 2.5

Maximum energy efficiency [%]: 95

No-load current max. [A]: 0.1

Line regulation [%]: 0.2

Load regulation [%]: 0.2

Temperature coefficient [%/°C]: 0.03

Minimum operating temperature [°C]: - 20

Maximum operating temperature [°C]: 60

Operating frequency [kHz]: 100

Output overload/short-circuit protection: Switching off the converter for the duration of overload

Thermal protection: Limiting the output current after exceeding the max. operating temperature, until it cools down

Protection against incorrect input polarity: Output circuit protection (wrong polarity at the input may damage the converter)

Protection when the max voltage is exceeded. inputs: Output circuit protection

Connection: Integrated cables

Cable length [mm]: 165

Tightness class: IP68

Length [mm]: 74

Width [mm]: 74

Thickness [mm]: 31

Spacing of mounting holes [mm ]: 65.1

Diameter of mounting holes: 5.3

Housing structure: Cast aluminum, transversely ribbed

Sealing: Epoxy resin

Cooling: Passive / Housing serves as a radiator

Weight [g]: 280

Primary and secondary side insulation: No - common mass
