Strong starter alternator installation Ursus C330

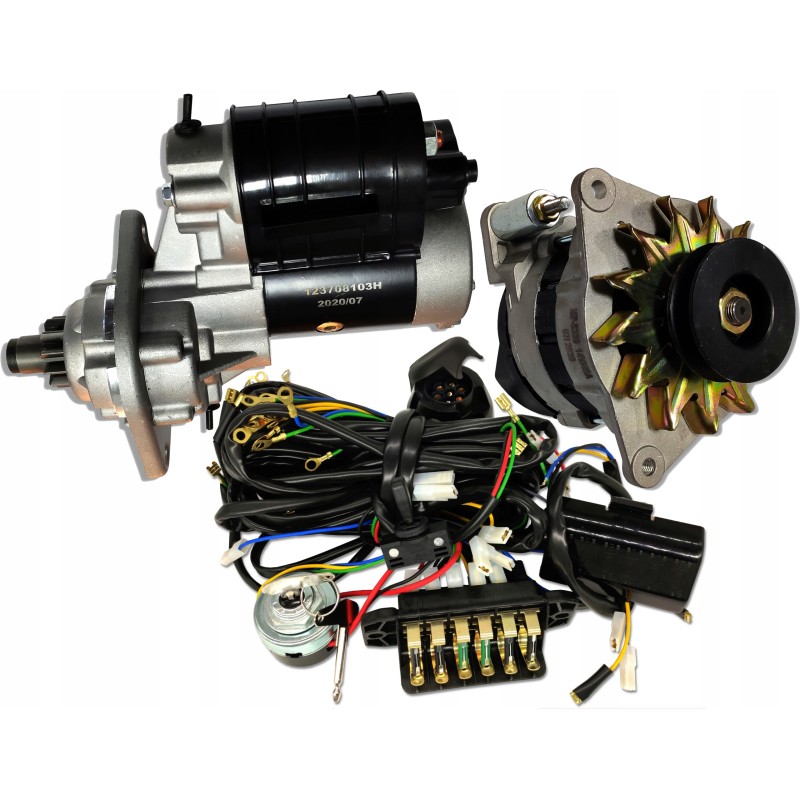

PREMIUM set - REINFORCED Starter + Alternator + Installation for URSUS C-330 tractors SKRAW-MET CODE: [7364]This is a set dedicated to URSUS C-330 agricultural machines.

The set includes: Reinforced starter with a reducer C-330 C-360 ZETOR URSUS 12V 2.8kW 11z [2563]

Alternator Ursus C-330 14v 45A [2511]

Electrical installation Ursus C-330 [2539]< p>

A complete set ready for work. The elements used in the set guarantee long and reliable operation.​

ENHANCED STARTER FOR URSUS ZETOR 12V 2.8kW MACHINE (11 teeth) SKRAW-MET CODE: [ 2563]ENHANCED VERSION It is characterized by greater power and at the same time lower power consumption and an additional cover for the machine (electromagnet).

High-speed starter of the 2nd generation with a reducer facilitating engine starting at low temperatures.

With a built-in planetary gear (reducer) on bearings - thanks to lower battery power consumption - it will start at ANY TEMPERATURE.

The dynamoelectric structure is made with particular care - only from high-quality materials, thanks to modern technology and quality control we guarantee a durable and reliable starter in operation.

This is a complete starter dedicated to ZETOR, URSUS C-330, C-360, C-330M, C-335 and related agricultural machines. It includes:

head and cover,

brushes

stator (winding)

rotor

automatic device with forks

automatic cover

bendiks

gear (reducer)

set of bearings

​NON-REGENERATED STARTER - BRAND NEW

Technical specifications: Power: 2.8 kW

Rated voltage: 12 V

Number of teeth on the bendix: 11

Rated speed at 20.5 Nm: 1500 rpm

Current consumption during idling: 160 A

Current consumption during full overload: 720 A

Hole spacing: 127x90x90mm

Holes: 10.5mm

For proper operation - do not connect a voltage higher than 16.5 V, and the operating time cannot be longer than 3 × 20 seconds. The preventive interval between starting the starter cannot be shorter than 30 seconds - otherwise it may risk overheating. ALTERNATOR C-330 14V 45AKOD SKRAW-MET: [2511]The alternator is a source of electrical energy, intended to work in parallel with battery of the electrical installation of agricultural vehicles/machines. It is used to charge the battery.

This is a complete alternator dedicated to URSUS 328, C-330, C-330M, C-335 agricultural machines. It includes:

housing,

pulley with a fan,

stator (winding)

rotor

voltage regulator,

brushes

set of bearings

set of elements for mounting with a sleeve.

Technical specifications: Internal spacing mounting holes from ear to ear (on the right side of the photo): 88 mm

External spacing of mounting holes from ear to ear (on the right side of the photo): 108 mm

Spacing from the left ear for right: 142 mm

Ear sleeve length: 45 mm

Rated voltage: 14 V

Rated current: 45 A

Rated rotational speed: 2500 rpm

Maximum rotational speed: 6000 rpm

Pulley: single

Proper operation of the alternator is expected at an ambient temperature of -40°C to +45°C and humidity 90%.

Alternator installation: Attention! Before installing the alternator, disconnect the battery in the system. When installing the alternator, you should:

Remove any preservatives from the alternator using rags soaked in gasoline and dry,

Mount the alternator on the engine bracket, without completely tightening the screws securing it to the block,

Place the drive belt on the alternator pulley and adjust its tension,

Set the alternator in the optimal position and tighten the mounting screws,

Connect the wires to the alternator in accordance with the electrical installation diagram vehicle,

Connect the battery terminals and start the vehicle.

The place where the power cable should be connected is marked in red, and the output to the control lamp is marked in blue. Note! Poor belt tension leads to reduced power delivered by the alternator and to undercharging of the battery. Excessive belt tension leads to significant overheating of the alternator bearings and their premature failure.

Attention! Installation of the belt on the alternator pulley should be done without using tools with sharp edges.

Set of electrical installation for URSUS C-330 SKRAW-MET CODE: [2539] POLISH product - high quality! Dedicated installation for agricultural tractors URSUS C-330.

It can be used in agriculture, horticulture, forestry, construction and industry in general.

All elements are made only of durable, high-quality plastics.

The installation is adapted to the alternator available on our other auctions.The electrical installation is made of high-quality cables.The set includes: a set of cables

an ignition switch with a key

fuse box

turn signal switch

All components in the set (i.e. ignition switch or switch) are already connected to the wires. Note! The installation does not contain fuses!
