Strong starter alternator installation Ursus C360

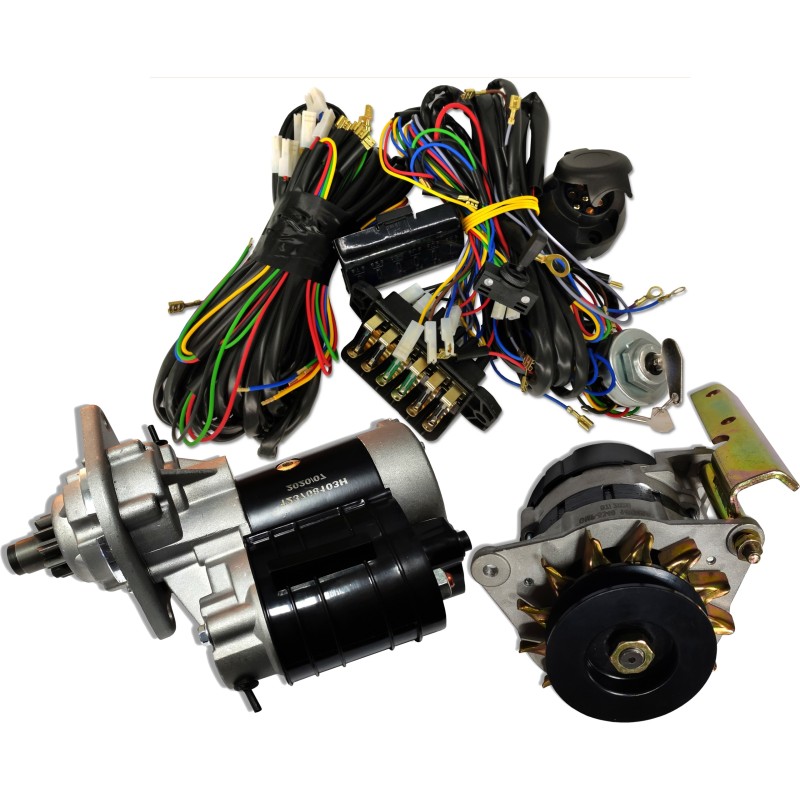

PREMIUM Set - REINFORCED Starter + Alternator + Installation for URSUS C-360 tractors SKRAW-MET CODE: [7365]This is a set dedicated to URSUS C-360 agricultural machines.

The set includes: Reinforced starter with a reducer C-330 C-360 ZETOR URSUS 12V 2.8kW 11z [2563]

Alternator Ursus C-360 14v 50A [2514]

Electrical installation Ursus C-360 [2508]< p>

A complete set ready for operation. The elements used in the set guarantee long and reliable operation. ENHANCED STARTER FOR URSUS ZETOR 12V 2.8 kW (11 teeth) MACHINERY ENHANCED VERSION It is characterized by greater power and at the same time lower power consumption and an additional cover for automatic (electromagnet).

High-speed starter of the 2nd generation with a reducer facilitating engine starting at low temperatures.

With a built-in planetary gear (reducer) on bearings - thanks to lower battery power consumption - it will start in ANY TEMPERATURE.

The dynamoelectric structure is made with particular care - only high-quality materials, thanks to modern technology and quality control, we guarantee a durable and reliable starter.

It is a complete starter dedicated to for agricultural machines ZETOR, URSUS C-330, C-360, C-330M, C-335 and derivatives. It includes:

head and cover,

brushes

stator (winding)

rotor

automatic device with forks

automatic cover

bendiks

gear (reducer)

set of bearings

NON-REGENERATED STARTER - BRAND NEWTechnical specifications:Power: 2.8 kW

Rated voltage: 12 V

Number of teeth on the bendix: 11

Rated rotational speed at 20.5 Nm : 1500 rpm

Current consumption during idle operation: 160 A

Current consumption during full overload: 720 A

Hole spacing: 127x90x90mm

Holes: 10.5mm

For proper operation - do not connect a voltage higher than 16.5 V, and the operating time cannot be longer than 3 × 20 seconds. The preventive interval between starting the starter is not may be shorter than 30 seconds - otherwise there may be a risk of overheating. ALTERNATOR C-360 14V 50AAThe alternator is a source of electrical energy intended to work in parallel with the battery of the electrical installation of agricultural vehicles/machines. It is used to charge the battery.

This is a complete alternator dedicated to URSUS C-355, C-360, C-4011 agricultural machines. It includes:

housing,

pulley with a fan,

stator (winding)

rotor

voltage regulator,

brushes

plastic cover

set of bearings

set of elements to be attached with a sleeve.

​

Technical specifications:Spacing from the left (lower) ear to the right (lower): 140 mm

Spacing from the left (lower) ear to the upper ear: 150 mm

Spacing from the right (lower) ear to the upper ear: 150 mm

Length of the ear sleeve: 106 mm

Length of the mounting screw attached to the sleeve: 200 mm

Rated voltage: 14 V

Rated current: 50 A

Rated power: 700 W

Rated rotational speed: 2500 rpm min

Maximum rotational speed: 6000 rpm

​

Pulley: single

Proper operation of the alternator is expected at ambient temperature from -40°C to +45°C and humidity 90%.

​

Alternator installation: Attention! Before installing the alternator, disconnect the battery in the system. When installing the alternator, you should:

Remove any preservatives from the alternator using rags soaked in gasoline and dry,

Mount the alternator on the engine bracket, without completely tightening the screws securing it to the block,

Place the drive belt on the alternator pulley and adjust its tension,

Set the alternator in the optimal position and tighten the mounting screws,

Connect the wires to the alternator in accordance with the electrical installation diagram vehicle,

Connect the battery terminals and start the vehicle.

The place where the power cable should be connected is marked in red, and the output to the control lamp is marked in blue. Note! Poor belt tension leads to reduced power delivered by the alternator and to undercharging of the battery. Excessive belt tension leads to significant overheating of the alternator bearings and their premature failure.

Attention! Installation of the belt on the alternator pulley should be done without using tools with sharp edges.

Electrical installation set for URSUS C-360 POLISH product - high quality! Dedicated installation for URSUS C-360 agricultural tractors.

It can be used in agriculture, horticulture, forestry, construction and broadly understood industry.

All elements are made only of durable, high-quality plastics.

Installation adapted to the alternator available on our other auctions.The electrical installation is made of high-quality cables.The set includes: a set of cables

ignition switch with key

fuse box

turn signal switch

All components in the set (i.e. ignition switch or switch) are already connected to the electrical cables. Note! The installation does not contain fuses!
