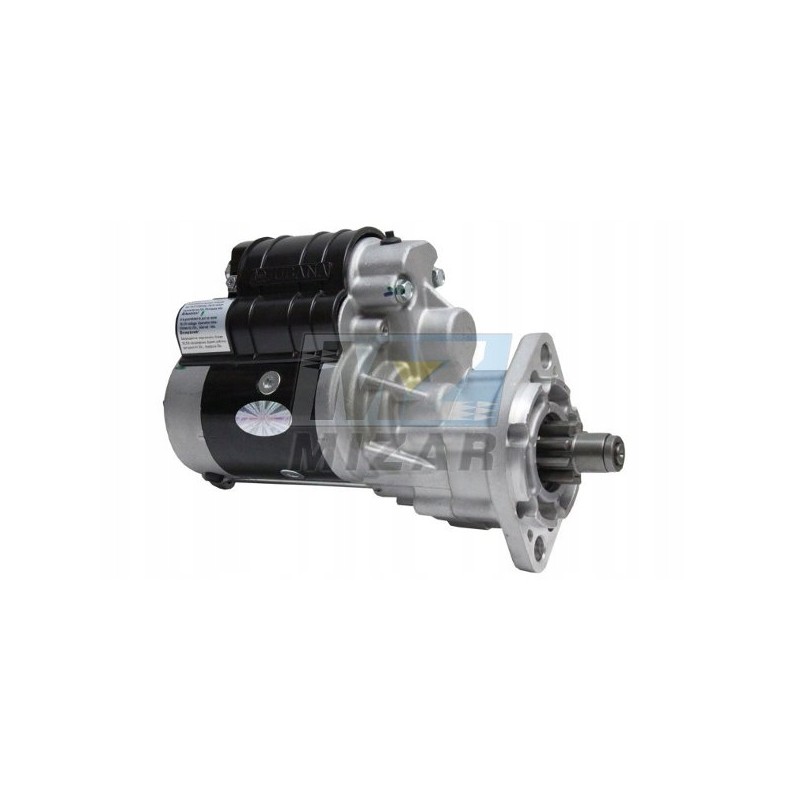

Starter with reducer c 328 2 8kw r 5 r5b jubana

STARTER WITH REDUCER JUBANA C-328 2.8KW 123708156 equivalent to R-5 R5B MIZAR number: 21409

Strengthened starter with a 2nd generation reducer based on HITACHI components!!

The 2nd generation high-speed starter is characterized by:

- Increased speed up to 5127 rpm.

- Only lower current consumption 161A

- Additional housing on the electromagnet

- Additional pin in the clutch unit, preventing chamfers entering the flywheel rim.

Technical data:

Power: 2.8kW 55Nm at 5127 rpm

Current: 12V

Number of teeth: 9

Hole spacing: 105mm

Starter construction diagram

Application:

Ursus C-328 C-325

The high-quality starter was manufactured by the Lithuanian company JUBANA.

The starter has a built-in reducer, which is extremely helpful when starting the engine at low temperatures. The starter uses bearings.

The starter is designed in a modern design.

The dynamoelectric structure of the starter is made with particular care: shockproof coupling unit, hermetic and waterproof electrical parts of the starter, high quality of workmanship, modern technology and production quality control ensure a durable and reliable device.

Simple and easy to service, it has the additional possibility of moving the head, which makes it more widely used.

The goods are covered by a 24-month warranty!

MIZAR number: 21409
