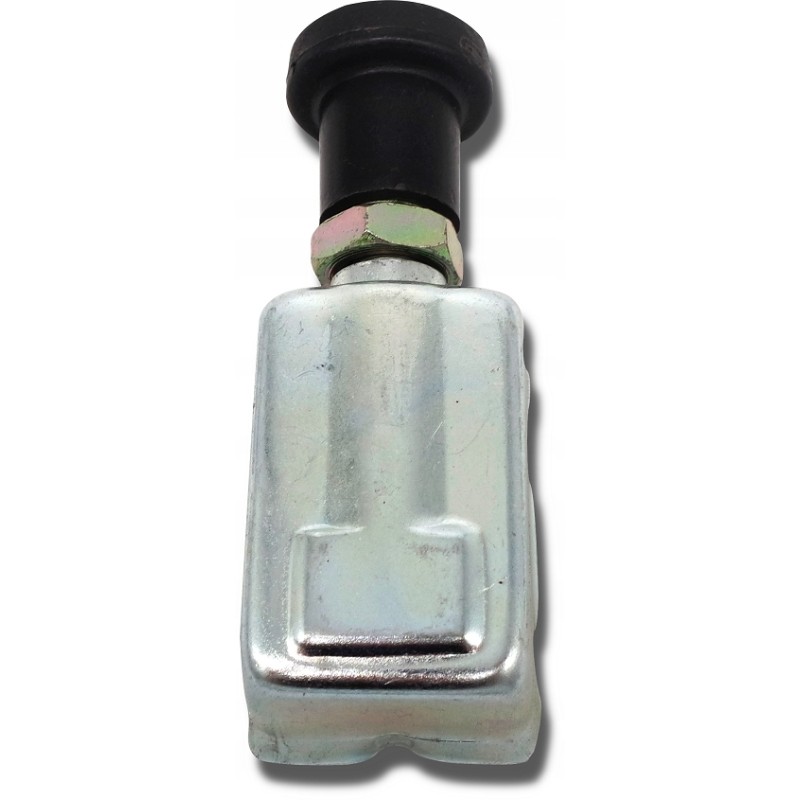

Case john deere starter button

Starter button switch CODE SKRAW-MET: [3573] The starter button can be used in the electrical installation of motor vehicles, agriculture, horticulture, forestry, construction and broadly understood industry.

Mainly used in agricultural machines: CASE:

323, 423, 523, 724 , 824, 433, 533, 633, 733, 833, 933, 743, 644, 744, 844, 745, 845, 1046, 1246, 946, 353, 453, 553, 654, 383, 884, D323

JOHN DEERE:

1020, 1120, 2020, 2120, 3120, 820, 920, 1030, 1130, 1630, 2030, 2130, 3030, 3130, 4230, 4430, 830, 930, 1035, 1635, 2035, 2135, 3135, 4040, 4240 , 4440, 4640, 4840, 8440, 755 Compact, 855 Compact, 955 Compact, 8430, 8630, 8650, 8850, 8640

Technical specifications: Permitted voltage: 12V/24V

Number of plugs: 4 male, 8.3 mm wide

Maximum length: 86 mm

Mounting nut - 17 wrench

Mounting thread: M10

Mounting diameter: Ø10.5 mm

Wall thickness: up to 3 mm

Load: 50 A/12 V, 27A/24V (terminal 17, 19), 12 A/12 V (terminal 50a), 9A/24V (terminal 50a)

Housing: galvanized steel
