Daytime running lights switch, automatic relay

AUTOMATIC DAYTIME LIGHT SWITCH WITH RELAY SOCKETBy using our kit, you can very easily connect the daytime running lights so that they turn on automatically when you turn the key in the ignition and turn off when you turn off the engine or turn on the dipped headlights.

Instructions for connecting the relay to the DRL lights :

PIN no. 30 - connect to the plus (+) of the ignition switch

PIN no. 85 - connect to ground

PIN no. 86 - connect to the plus (+) of the low beam lights

PIN no. 87 - cut and insulate

PIN no. 87a - connect to the plus (+) daytime running lights

DON'T BUY A CAT IN A BAG! Are you tired of being disappointed when reality differs from your expectations?

Here you can see what the product you want to buy actually looks like

Enter into your browser:

- -->,>,>, www.e-mastershop.pl/40a <,<,<,---and see the product photos in HD quality.

You can be sure that what you buy from us is what you will receive !

Your satisfaction is the most important thing for us!

Technical data:

Coil control: 12V

Maximum current: 40A

Number of connectors: 5 pcs.

Width of connectors: 6.3mm

Cross-section of working wires: 1.5mm^2

Cable cross-section control: 0.75mm^2

Cable length: 14cm

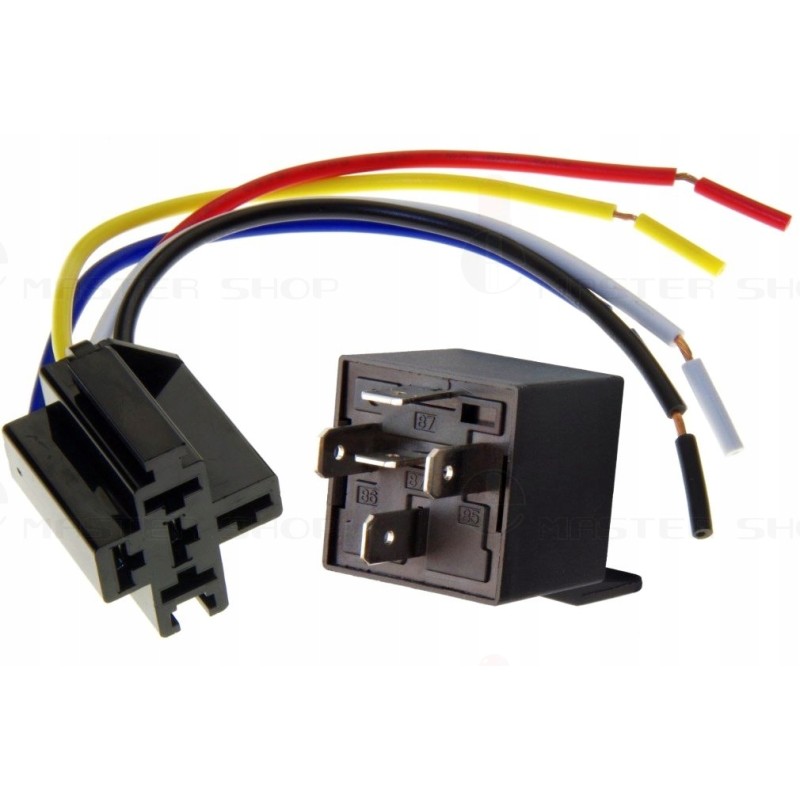

By purchasing from us you will receive: normally open and normally closed relay

relay socket with cables
