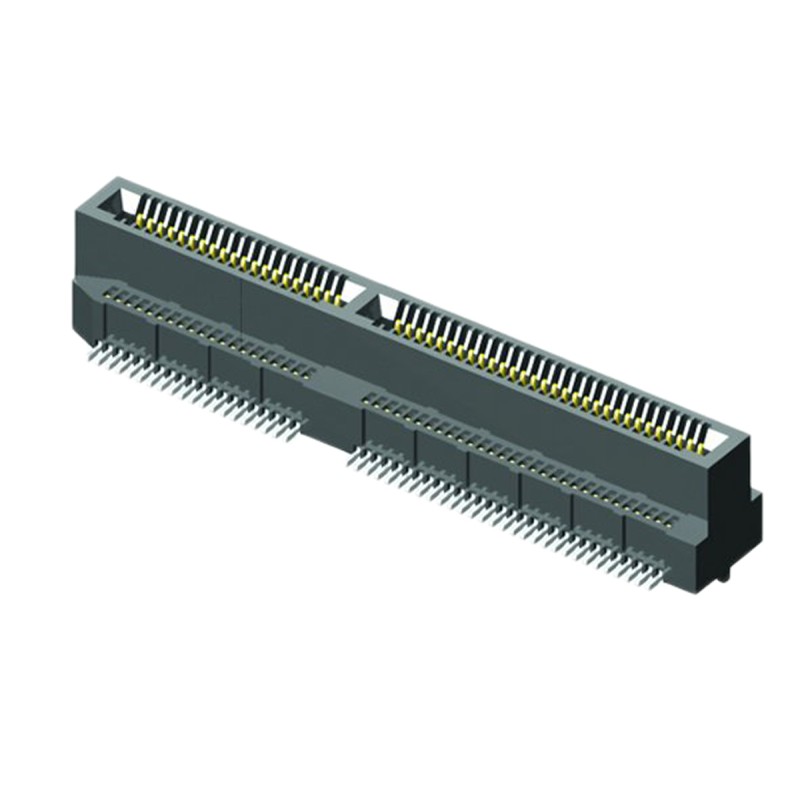

    2 pcs - Samtec MEC8-DV Series Vertical Female Edge Connector, Surface Mount, 80-Contacts, 0.8mm Pitch, 2-Row, Solder Terminatio
    • 2 pcs - Samtec MEC8-DV Series Vertical Female Edge Connector, Surface Mount, 80-Contacts, 0.8mm Pitch, 2-Row, Solder Terminatio

    2 pcs - Samtec MEC8-DV Series Vertical Female Edge Connector, Surface Mount, 80-Contacts, 0.8mm Pitch, 2-Row, Solder Terminatio

    Allparts-UK/15/R/901-2055
    Samtec
    £39.52
    Delivery: 4-7 business days
    Quantity
    52 Items

    Product Details
    Samtec
    Allparts-UK/15/R/901-2055
    MEC8-140-02-L-DV-A
    52 Items

    Data sheet

    Manufacturer
    Samtec
    Width
    7mm
    Length
    39.8mm
    Current rating
    1.8A
    Contact material
    phosphor bronze
    Contact plating
    Gold over Nickel, Tin over Nickel
    A-Supplier
    Allparts-UK-R
    Series
    MEC8-DV
    Voltage Rating
    185 V ac
    Maximum Operating Temperature
    +125°C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -55°C
    Housing Material
    Liquid Crystal Polymer
    Number of Contacts
    80
    Gender
    Female
    Termination Method
    Solder
    Body Orientation
    Vertical
    Number of Rows
    2
