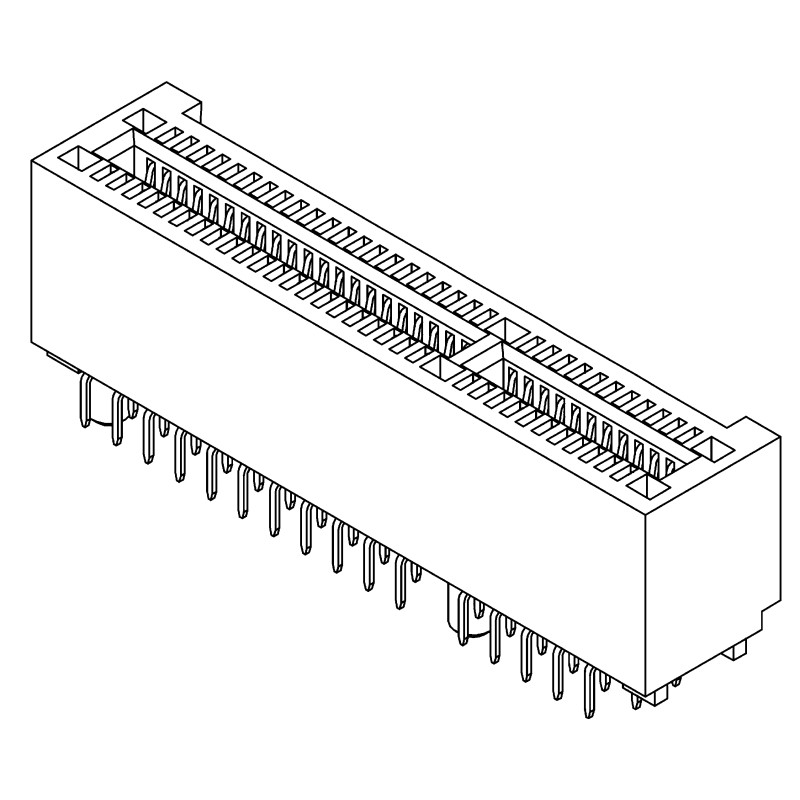

1 pcs - Samtec PCIE Series Female Edge Connector, Through Hole Mount, 164-Contacts, 1mm Pitch, 2-Row, Solder Termination
    • 1 pcs - Samtec PCIE Series Female Edge Connector, Through Hole Mount, 164-Contacts, 1mm Pitch, 2-Row, Solder Termination

    1 pcs - Samtec PCIE Series Female Edge Connector, Through Hole Mount, 164-Contacts, 1mm Pitch, 2-Row, Solder Termination

    Allparts-UK/15/R/767-7058
    Samtec
    £12.69
    Delivery: 4-7 business days
    Quantity
    6 Items

    Product Details
    Samtec
    Allparts-UK/15/R/767-7058
    PCIE-164-02-F-D-TH
    6 Items

    Data sheet

    Manufacturer
    Samtec
    Width
    7.5mm
    Length
    89mm
    Current rating
    2.5A
    Contact material
    phosphor bronze
    Contact plating
    Gold over Nickel
    A-Supplier
    Allparts-UK-R
    Series
    PCIE
    Maximum Operating Temperature
    +125°C
    Mounting Type
    Through Hole
    Minimum Operating Temperature
    -55°C
    Housing Material
    Nylon
    Number of Contacts
    164
    Gender
    Female
    Termination Method
    Solder
    Body Orientation
    Straight
    Number of Rows
    2
