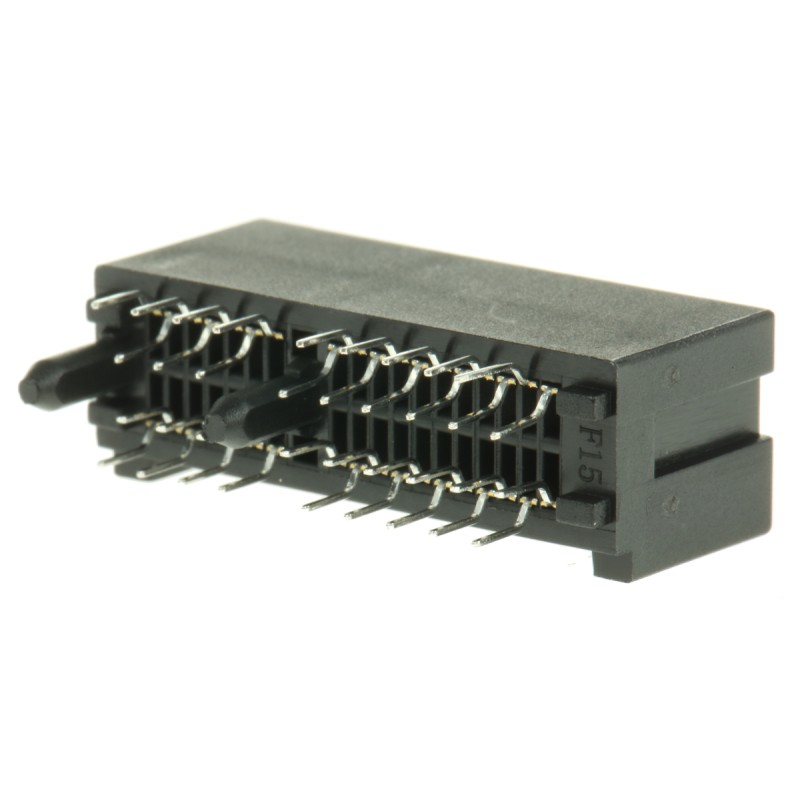

10 pcs - PCIE-036-02-F-D-TH Samtec PCIE Series Female Edge Connector, Through Hole Mount, 36-Contacts, 1mm Pitch, 2-Row, Solder

Samtec Edge Connector, 2.5A Current Rating, Straight Body Orientation - PCIE Series - PCIE-036-02-F-D-THBoost your PCB's connectivity capabilities with this edge connector from Samtec. The flexible unit supports one, four, eight and 16 PCI Express links. For versatility, it mounts vertically at a right angle or on the rim of your circuit board. To install the connector, just pop the integrated pins through the corresponding holes on your PCB and solder them in place. A nylon housing insulates the live contacts, so there's little risk of an electric shock. Gold-over-nickel contact plating resists corrosion, making it a sure bet in humid conditions.Features & Benefits• Polarized for correct mating to prevent damage• Alignment pins for precise positioning on the PCB• Overall dimensions of 25 (L) x 7.5 (W) x 11mm (D) slot seamlessly into densely packed arrangements• Highly conductive phosphor bronze contacts speed signals along at 14GbpsApplications• Server rooms• Gaming consoles• Smart appliances• Military equipmentWhat's the operating temperature range of this edge connector?It handles -55°C to +125°C temperatures, so it's ruggedly built and suitable for most installations.What size expansion card can I use with it?The connector takes 1.6mm expansion cards for wide compatibility.Edge Connectors - Samtec
