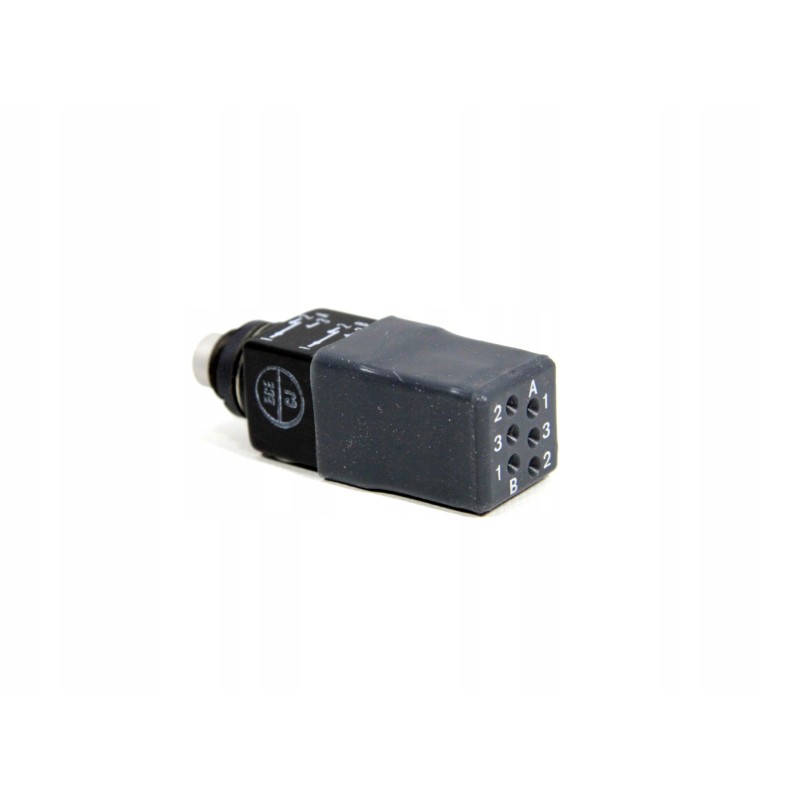

Dual-circuit-encapsulated-push-button aviation

offer you a two-circuit astable aviation button.

The offered button always returns to the upper position.

It has two sets of switched contacts.

The switch can nominally switch on a current of 10A at 27V.

In reality, the switched current may be higher.

The switch has solid gold-plated contacts.

The switch is made very solidly, it is hermetic.

The switch body is made of aluminum and hard bakelite, so that even under the influence of temperature or other factors (gasoline), the switch does not "fall apart" as is the case with ordinary switches for general use.

The switch head is made of aluminum, to switch the switch you need to press it clearly and firmly with your finger.

This prevents accidental switching on.

After pressing, you can hear a clear 'click'.

The switch is mounted to the front plate, in a 9.5 mm hole.

Dimensions switch:

head height 10 mm

width 15 mm

depth 34 mm

Cables are connected by clamping (or soldering) classic 1.8 mm diameter terminals onto them and pressing them through the rear seal into the switch body.

Alternatively, you can remove the rear silicone rubber and then simply solder the wires to the cable terminals.

The switch has much smaller dimensions and weight than the popular AZS switches.

Switches of this type are used in newer airplanes and helicopters.

Brand new, comes from a set of spare parts.

I provide a start-up warranty.
