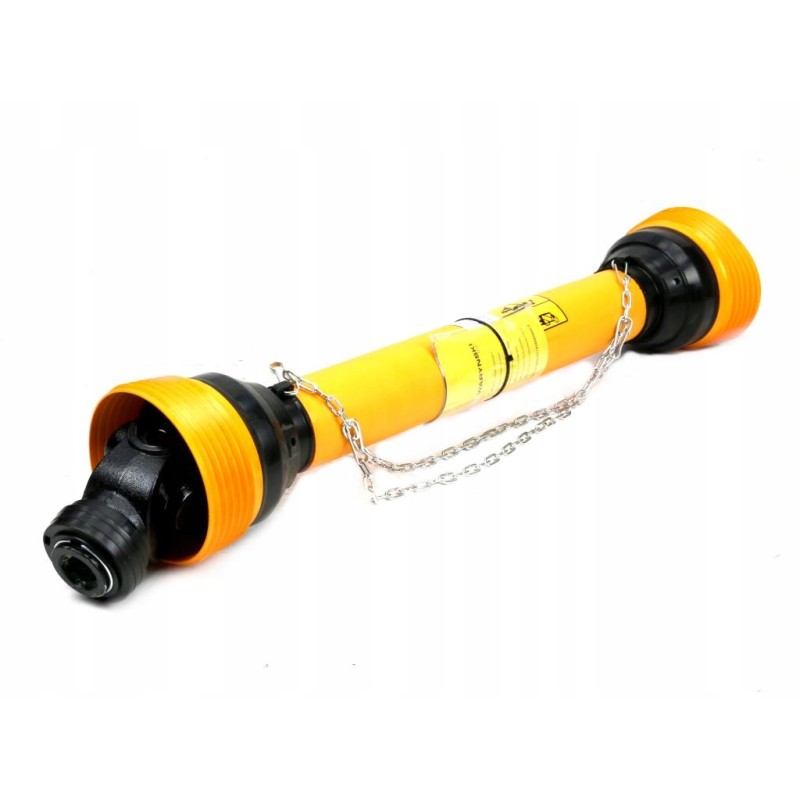

PTO shaft 660 1000mm 830n Warynski

PTO shaft 660-1000mm 830N CE 2020 series 6R WARYŃSKIThe shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Type of telescopic connector: Pipe triangular

Works with: External fork - WR227601, Cross fork - WR219601, Internal pipe fork. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR2363505, WR2140600, Outer pipe - WR2362535, WR2141600, Housing - WR22961129,

Inner pipe wall thickness: 5.5 mm

Outer pipe wall thickness: 4 mm

Clutch disconnecting torque: None Nm

Clutch on the Machine side: None

Clutch on the Tractor side: None

Maximum length: 1000 mm

Minimum length: 660 mm

Inner tube thickness: 45 mm

Outer tube thickness: 54 mm

Nominal power: 47 KW (64 HP)

Mounting to the machine: 1 3/8' - Z6 inch

Mounting to the tractor: 1 3/8' - Z6 inch

Torque: 830 Nm

Working angle: Max 17°

Bearing diameter: 30.2 mm

Height of cross: 91.4 mm
