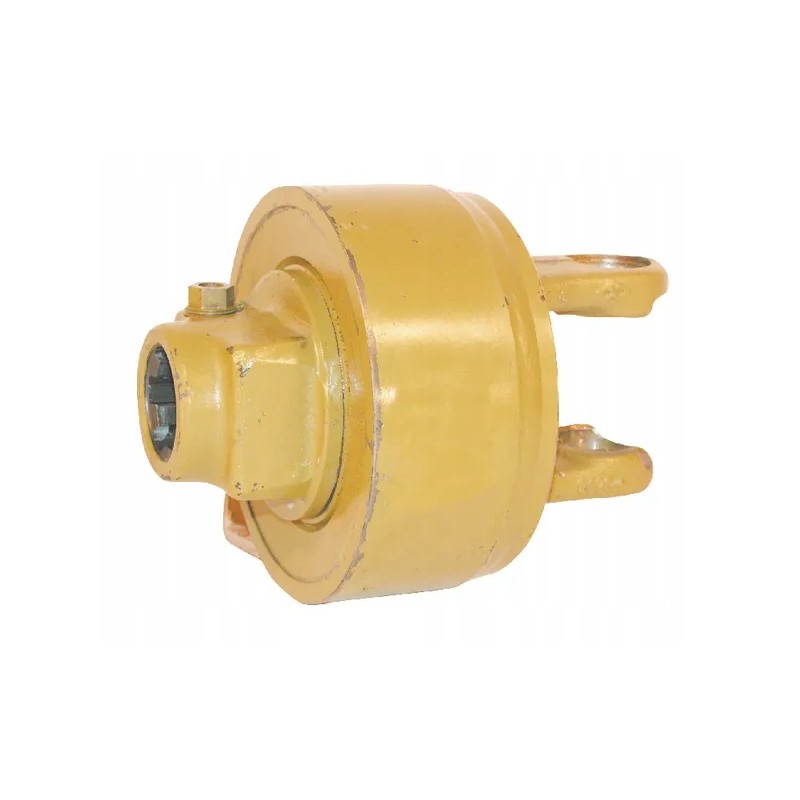

Walterscheid ratchet clutch k64 22r 1 3 8 z6

Walterscheid clutch, ratchet K64/22R, 1 3/8 Z6 2000 Nm

Part number: K. 5911043200

EAN: 8435194029629

Unit: Piece

Product Description:

K64 Series Cam Clutches

The series includes K64/12, K64/22, K64/24

Specifications:

In the event of an overload, the drive is interrupted

starts automatically at a lower speed

Advantages:

Unidirectional

Protection drive system

No loss of operating time due to necessary repairs

Product details:

Lowering the rpm allows for a pulsating increase in torque

Drive stops when overload

Automatic start at low rpm

Application:

Baler

silage trailer

power harrows

adapter for forage harvesters

Features: 1 direction of rotation

Technical information: By lowering the number of revolutions, a pulsating reduction in torque may occur

Benefits:

Drive protection

no time lost in restoring torque

Type - code: K64/22R

Connection type: Clamping cone

Connection outside diameter:

1-3/8 inch

1.375 inch

Number of connection cutters: 6

Shaft/shaft size:

W2400

P400

Maximum rotational speed: 1000 rpm

Max. static torque: 2000N m

Cross sleeve diameter: 32mm

Cross length: 86mm

Outer diameter: 168mm

Reference number OE: 1690102

Fits machine/vehicle brand: Kverneland

Size: W 2400cal
