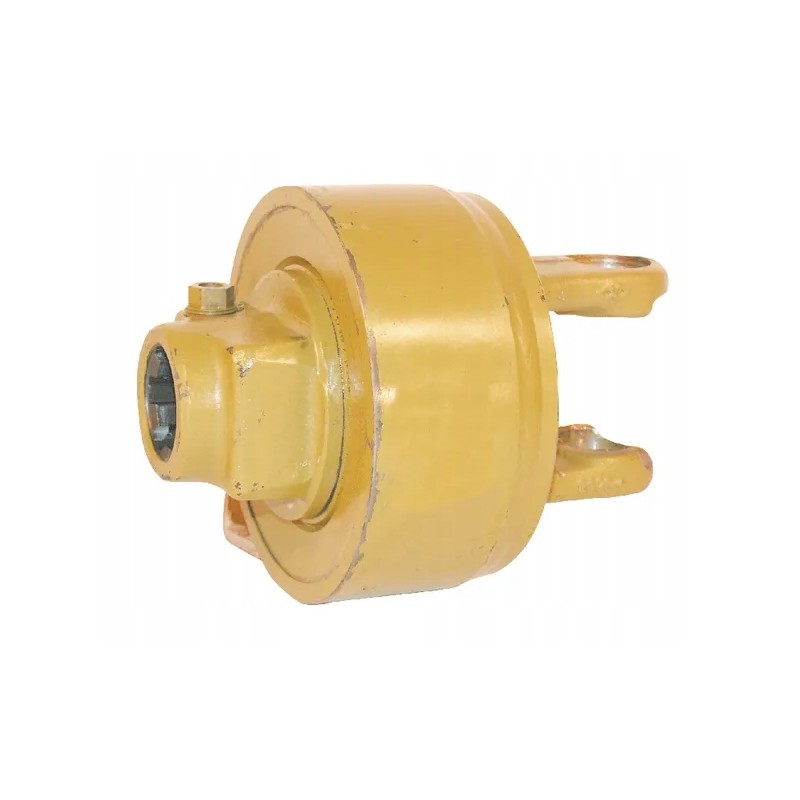

Walterscheid ratchet clutch k64 14r 1 3 8 z

Walterscheid clutch, ratchet, K64/14R, 1 3/8 Z6, 1650Nm, W 2400 series

Part number: K. 5910042165

EAN: 8432970150799

Unit: Piece

Product Description:

K64 Series Cam Clutches

The series includes K64/12, K64/22, K64/24

Specifications:

In case of overload, the drive is interrupted

starts automatically at a lower speed

Advantages:

Unidirectional

Propulsion system protection

No loss of working time due to necessary repairs

Product details:

Lowering the rpm allows for pulsed torque build-up

Drive stops in case of overload

Automatic start at low rpm

Application:

Baler

silo trailer

power harrows

adapter for forage harvesters

Features: 1 direction of rotation

Technical information: By lowering the number of revolutions, pulsation reduction may occur torque

Benefits:

Drive protection

no time lost in restoring torque

Type - code: K64/14R

Connection type: Clamping cone

Connection OD:

1-3/8 inch

1.375 inch

Number of connection cutters: 6

Shaft/shaft size:

W2400

P400

Maximum rotational speed: 1000 rpm

Max. static torque: 1650N m

Cross sleeve diameter: 32mm

Cross length: 86mm

Outer diameter: 130mm< p>

Reference number OE: 1133895

Fits machine/vehicle brand: Claas

Size: W 2400cal
