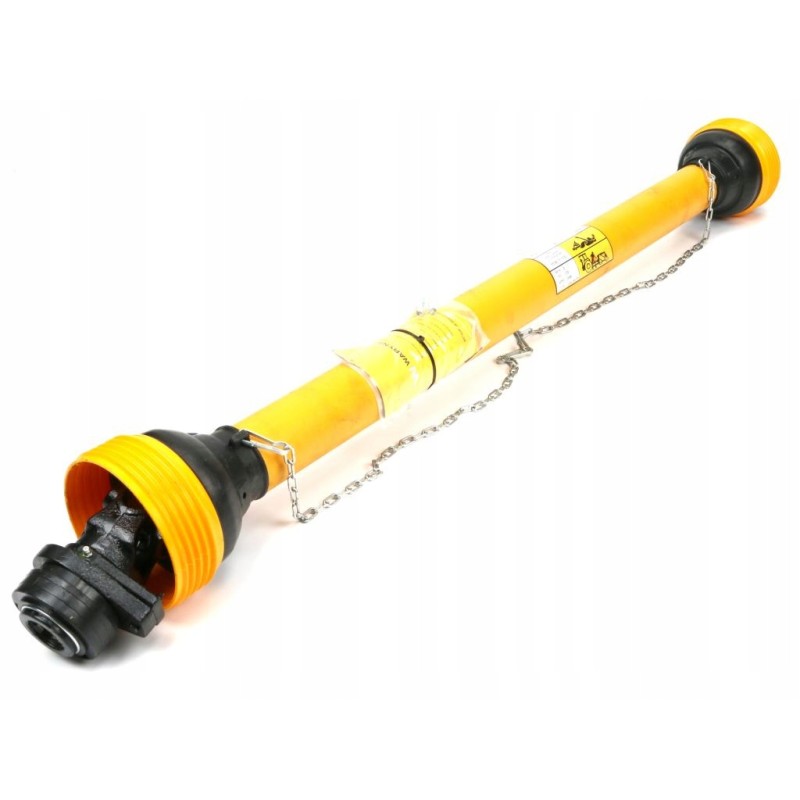

PTO shaft 1110 1750mm 270nm Warynski

PTO shaft 1110-1750mm 270Nm clutch with pin 900Nm CE 2020 series 2R WARYŃSKIShaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Type of telescopic connector: Triangular pipe

Works with: External fork - WR227201, Cross connector - WR219201, Internal pipe fork. - WR219207, Outer pipe fork - WR219206, Inner pipe - WR2321990, Outer pipe - WR2322985, Housing - WR21921129

Wall thickness of the inner pipe: 3.2 mm

Wall thickness of the outer pipe : 3.4 mm

Clutch disconnecting torque: 900 Nm

Machine side clutch: Clutch with pin

Tractor side clutch: None

Maximum length: 1750 mm

Minimum length: 1110 mm

Inner tube thickness: 36 mm

Outer tube thickness: 43.5 mm

Nominal power: 15 KW (21 HP)

Mounting to the machine: 1 3/8' - Z6 cal

Mounting to the tractor: 1 3/8' - Z6 cal

Torque: 270 Nm

Operating angle: Max 17°

Bearing diameter: 23.8 mm

Height of the cross : 61.3 mm
