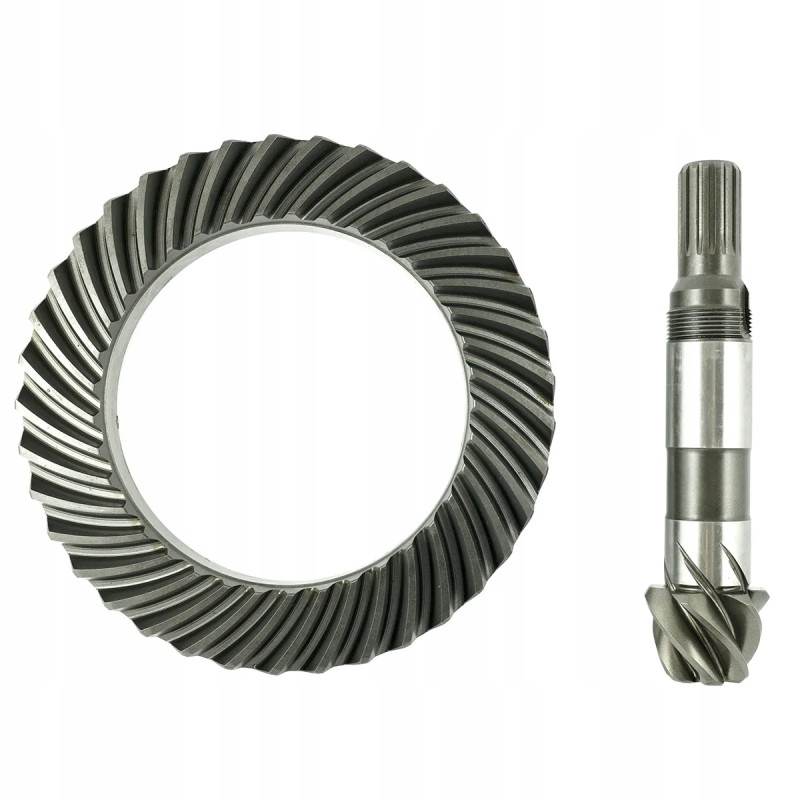

37t disc wheel, 6t roller attacking the LS G400 bridge

Traktor_com_pl offers: 37T disc wheel, 6T axle attack shaft LS G400LS Tractor

Attack roller with disc wheel for the differential mechanism of LS R/XR/MT series tractors.

Condition: New

Parts: Drive

Outer diameter (mm): 32 / 43.50 (gear, worm)

Height (mm): Wheel: 24.90 mm (measured with teeth), 14/19 mm (measured between the teeth)

Cutter length (mm): 28

Cutter diameter (mm): 21.90 mm (measured with teeth), 19.50 mm (measured between the teeth)

Wheel diameter (mm): 188 (outer), 126.50 (inner)

Number of teeth (pcs.): 37T (wheel ), 6T (sprocket)

Tractor models: LS R65, LS XR60, LS R43, LS MT357, LS XR50, LS R41

Production: Replacement

Wheel dimensions:

Outer diameter: 188 mm,

Inner diameter: 126.50 mm,

Height: 24.90 mm (measured with teeth), 14/19 mm (measured between the teeth),

Number of teeth: 37T.

Diameter of holes for mounting screws (thread): 8.15 mm,

Spacing of holes for mounting screws: 145 mm (measured diagonally), 55 mm (measured from each other),

Number of holes for mounting screws: 8 pcs.

Shaft dimensions:

Outer diameter: 29.80 mm,

Total length: 178 mm,

Sprocket diameter: 32 / 43.50 mm,

Sprocket thickness: 33 mm,

Cutter working length: 28 mm,

Cutter diameter: 21.90 mm (measured with the teeth), 19.50 mm (measured between the teeth).

Tractor models :

LS MT357

LS R65

LS XR50

LS XR60

LS R41

LS R43

Number 2 marked in red in the graphic.
