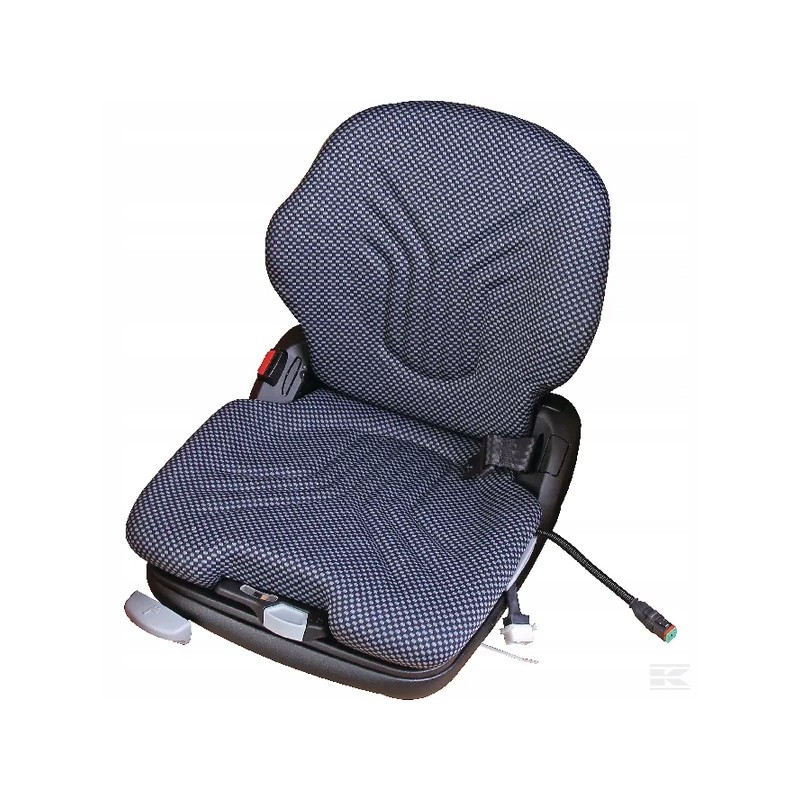

Seat primo l g1293488

Primo LN seat Part number: G1293488

Unit: Piece

Specifications:

Air suspension seat

Asymmetric backrest

Application: For construction machines and forklifts

Properties:

Small installation dimensions

Seat cushion width 470 mm

Spring deflection 110 mm

Longitudinal adjustment 210 mm

Backrest inclination adjustment from -5° to +30°

Mechanically adjustable lumbar support

Duo Sensitiv back support system, rollable

Electro-pneumatic load adjustment from 45 to 170 kg

Weight 28 kg

Technical information:

Meets the requirements of the ISO 6683 standard for construction machines

Meets the requirements of the FEM 4.002 standard for forklifts

Benefits:

Easy operation

Free space for the elbow

Suspension type: Pneumatic

Upholstery material: Fabric

Upholstery color: Black

Total width: 470 mm

Consists of:

Seat

Seat contact switch

Without armrests

Armrests included: No

Headrest included: No

Seat belts included: Yes

Switch included: Yes

Auto-adjustment to the user's weight: No

Model: MSG75/521

Backrest angle adjustment: 30 °

Depth: 610 mm

Minimum working load: 45 kg

Suspension travel: 8 cm

Max working load: 170 kg

Fits machine/vehicle models: MSG75 / 521

Total height: 619 mm

Heated: No

Total length: 610 mm

Supply voltage: 12 V
