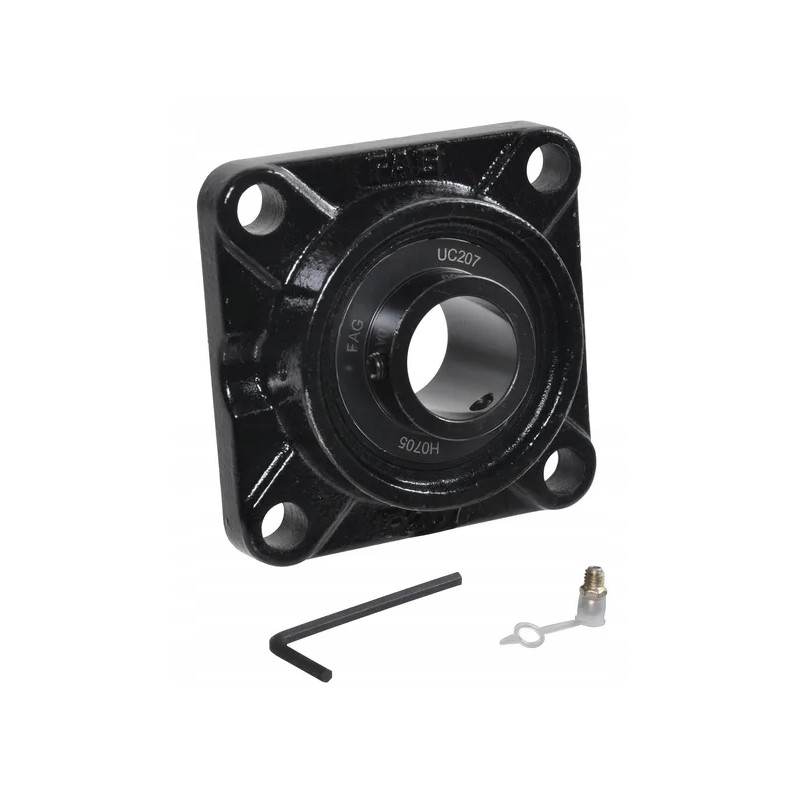

Bearing with square housing, complete

Bearing with square housing, complete

Part number: K.UCF205

EAN: 8716106792177

Unit: Art

Product Description: The square housing self-aligning ball bearing units with four screw holes are pre-assembled and pre-lubricated. Thanks to this, they can be installed quickly. Self-aligning spherical ball bearing outer ring with wide inner ring compensates for shaft misalignment.Show more

Advantages:

Perfect for limited installation spaces

Assembled, ready to use

Pre-lubricated

Product details:

The inner bearing has an extended inner ring on both sides with 2 set screws

Greasable

Self-aligning ball bearing

Ball bearing with wide inner ring

Features:

The inner bearing has an inner ring extended on both sides with 2 adjustment screws

Greasable

Contains:

Bearing housing

Bearing

Grease nipple

Housing type: Square flange

dInner bearing diameter: 25mm

aTotal length: 95mm

aHousing width: 95mm

Total height: 35.7mm

lCasing height: 27mm

BiBearing inner ring width: 34mm

Position of the bearing balls relative to the end of the shaft/shaft: 16mm

lPosition of the bearing balls relative to the mounting surface: 14.3mm

eSpacing of mounting holes: 70mm Diameter of mounting holes: 12mm Lubrication tip thread diameter: M6

Radial static load: 7800N

Radial dynamic load: 14000N

OE reference number: UCF205-J7
