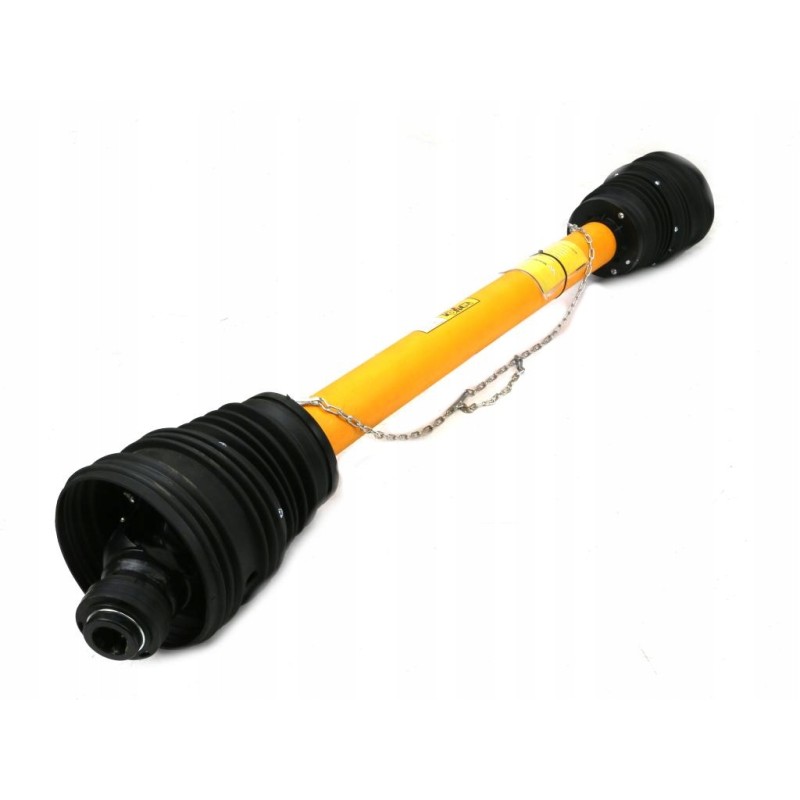

PTO shaft 1010 1560mm 830nm Warynski

PTO shaft 1010-1560mm 830Nm wide-angle on both sides CE 2020 series 6R WARYŃSKIThe shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Type of telescopic connector: Pipe triangular

Works with: External fork - WR227601, WR227602, Krzyżak - WR219601, Internal pipe fork. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR2363855, WR2140600, Outer pipe - WR2362885, WR2141600, Housing - WR22961129,

Inner pipe wall thickness: 5.5 mm

Outer tube wall thickness: 4 mm

Clutch disconnecting torque: None Nm

Machine side clutch: Wide angle

Tractor side clutch: Wide angle

Maximum length: 1550 mm

Minimum length: 1010 mm

Inner tube thickness: 45 mm

Outer tube thickness: 54 mm

Nominal power: 47 KW (64 HP)

Mounting to the machine: 1 3/8' - Z6 inch

Mounting to the tractor: 1 3/8' - Z6 inch

Torque: 830 Nm

Operating angle: Max 35° temporarily 80°

Bearing diameter: 30.2 mm

Cross height: 91.4 mm
