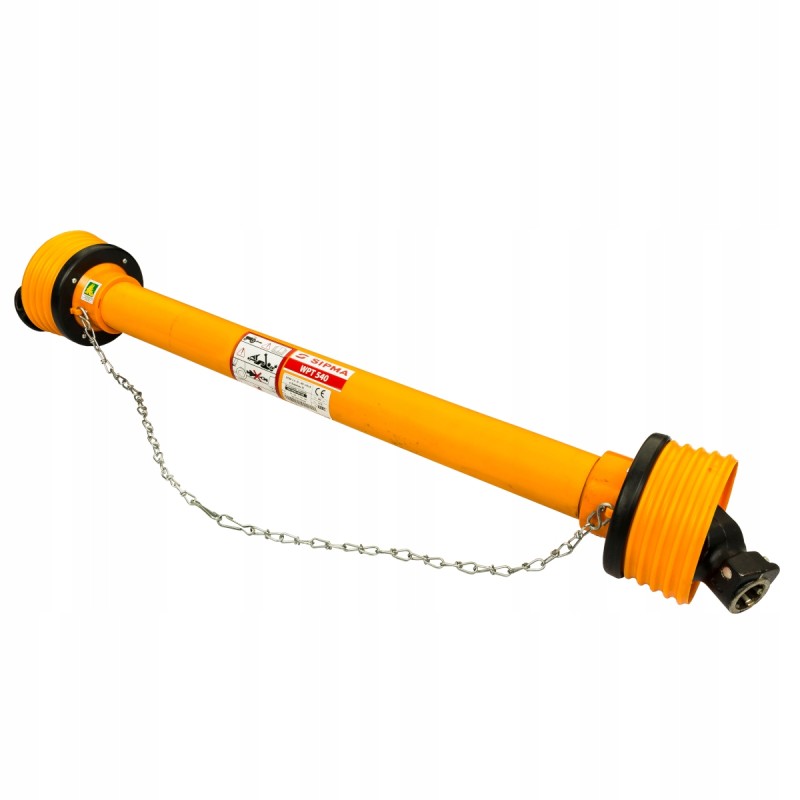

Articulated and telescopic shaft 1430mm 1010 1775 540nm

PTO shaft 1430mm 1010-1775mm 540Nm SIPMA WPT 540 5R-502-7-HA-502 MIZAR number: 72578

PTO shaft 1430mm 1010-1775mm 540Nm SIPMA WPT 540 5R -502-7- HA-502

SIPMA PTO shafts are used to transfer a specific torque from the tractor's power take-off shaft (PTO) to the machine's power take-off shaft (WPM).

Technical information:< p>

Nominal length: 1430mm

Minimum length: 1010mm

Maximum length: 1775mm

Torque: 540Nm

PTO tractor/machine: 1.3/8 Z6 (one latch) / 1.3/8 Z6

Number of cutters tractor/machine: 6 / 6

Permissible angle of continuous operation: 25º

Permissible angle of temporary operation: 45º

Strength parameters at 540 rpm PTO

Power: 31kW / 42KM

Torque: 540Nm< p>

Strength parameters at 1000 rpm PTO

Power: 47kW / 64KM

Torque: 450Nm

Maximum dynamic torque: 810Nm

Application:

Neptun

Sprayers

Manufacturer: Original SIPMA

Catalog number: 5R-502- 7-HA-502

MIZAR number: 72578
