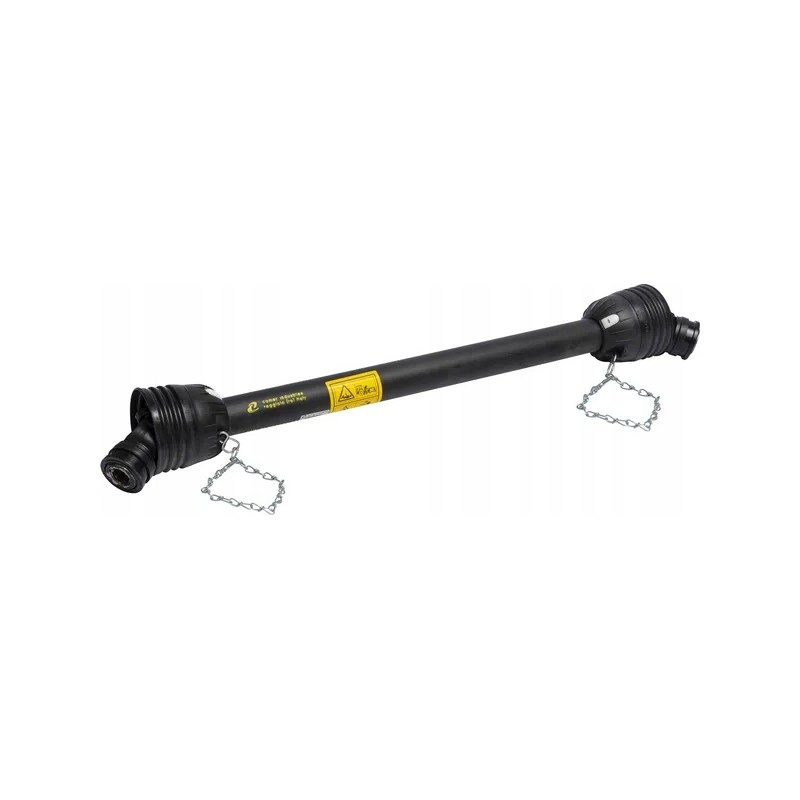

Cardan shaft T40 l 610 mm quick-connect fork

T40 joint shaft L=610 mm, Comer quick-connect fork

Part number: K. T400610ENC12C12

EAN:

Unit: Piece

Application:

Seeders

Root harvesters

Mowers

Properties:

Lubrication frequency: 8 hours

CE marking is present

Technical information:

Follow the Comer operating instructions

Max. dynamic power 540 rpm: 26 kW, 460 Nm

Max. dynamic power 1000 rpm: 40 kW, 380 Nm

Values at a deflection angle of 5° and a service life of 1000 hours

Outer diameter of the connection on the tractor side: 1-3/8 inch

Number of connection keys on the tractor side: 6

Type of connection on the tractor side: Flange gate valve

Accessories on the tractor side: Quick-connect fork

Machine side connection OD: 1-3/8 inch

Number of machine side connection keys: 6

Machine side connection type: Flanged gate valve

Machine side accessories: Quick-connect fork

Shaft size: T40

LDength: 610mm

Power at 540 rpm: 26kW

Power at 1000 rpm: 40kW

Diameter of the cross arm sleeve on the tractor side: 27mm

Length of the cross head on the tractor side: 74.6mm

Diameter of the cross head sleeve on the machine side: 27mm

Length of the cross on the machine side: 74.6mm

Wall thickness of the outer pipe: 3.4mm

Larger external diameter of the outer pipe: 43.5mm

Wall thickness of the inner pipe: 4.5mm

Larger outer diameter of the inner pipe: 36mm

Pipe profile shape: Triangular

Dynamic torque max.: 780N m

Reference number OE: 07.425.072.11
