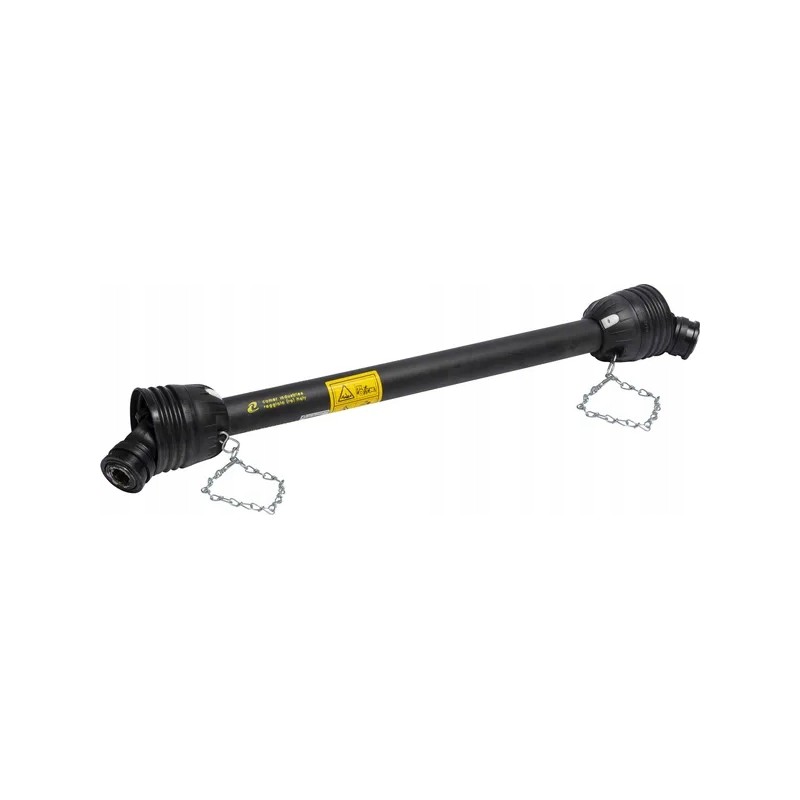

Cardan shaft t10 l 860 mm quick-connect fork

T10 joint shaft L=860 mm, Comer quick-connect fork

Part number: K. T100860ENC12C12

EAN:

Unit: Piece

Application:

Rakes

Hay tedder

Field sprayers

Properties:

Lubrication frequency: 8 hours< p>

CE marking is present

Technical information:

Follow the Comer operating instructions

Max. dynamic power 540 rpm: 12 kW, 210 Nm

Max. dynamic power 1000 rpm: 18 kW, 172 Nm

Values at a deflection angle of 5° and a service life of 1000 hours

Outer diameter of the connection on the tractor side: 1-3/8 inch

Number of connection keys on the tractor side: 6

Type of connection on the tractor side: Flange gate valve

Accessories on the tractor side: Quick-connect fork

Machine side connection OD: 1-3/8 inch

Number of machine side connection keys: 6

Machine side connection type: Flanged gate valve

Machine side accessories: Quick-connect fork

Shaft size: T10

LDength: 860mm

Power at 540 rpm: 12kW

Power at 1000 rpm: 18kW

Diameter of the cross bush on the tractor side: 22mm

Length of the cross on the tractor side: 54mm

Diameter of the cross bush on the side machine: 22mm

Length of the cross on the machine side: 54mm

Wall thickness of the outer tube: 2.6mm

Larger external diameter of the outer tube: 32.5mm< p>

Wall thickness of the inner pipe: 3.5mm

Larger external diameter of the inner pipe: 26.5mm

Pipe profile shape: Triangular

Dynamic torque max.: 320N m

Reference number OE: 07.125.118.11
