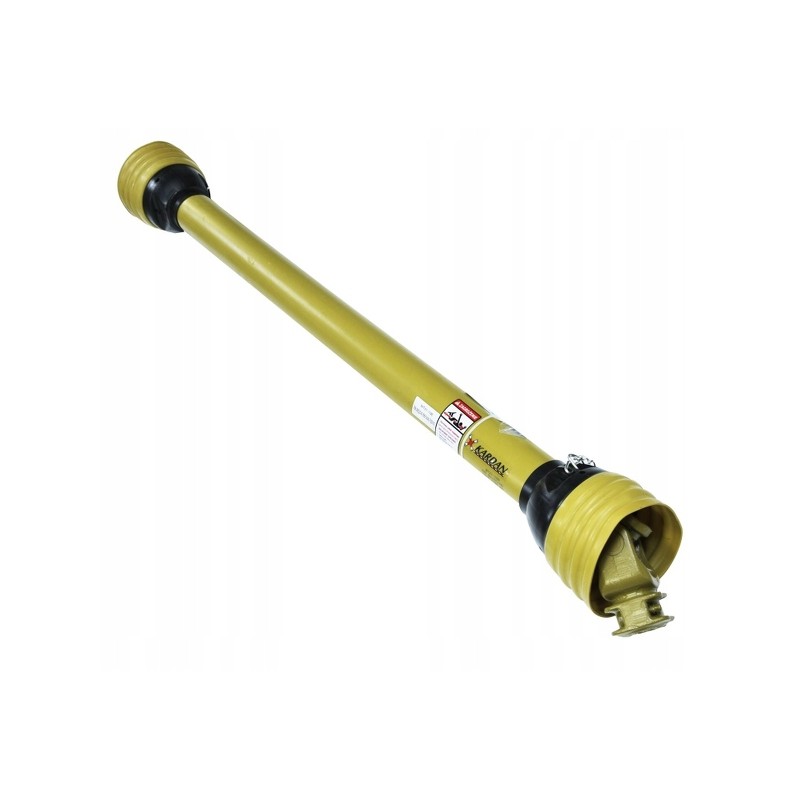

Milled articulated and telescopic shaft 700nm 1310 1

Milled PTO shaft 700Nm, 1310-1795mm, cross 32x76 * p>

Article number: WT21-108

EAN code: 6090000344079

CN code*: 8483105090

Product description Continuous working torque: 700 Nm

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles cross: 32x76mm

Tube profile: z-12

Internal milled shaft: 40mm

Outer tube dimensions: 58x3mm

Tractor protection: Side latch

Machine protection: Side latch

Working angle: max. 25° (temporary max. 45°)

Torque at 540 rpm: 700Nm

Shaft length (from the axis of the cross to the axis of the cross):

minimum: 1310mm

maximum: 1795mm

About the manufacturer X KARDAN is a Polish brand representing the manufacturer of universal articulated shafts -telescopes for all types of agricultural machines and transmission shafts for industrial machines.

The company employs over 200 employees to cover an area of over 20,000. square meters to be able to produce for global markets, which are the USA, Germany, Japan, Italy, Australia and the Middle East.

Since 2019, X KARDAN has also been present with its products in Poland, providing the highest quality in accordance with its ISO 9001/TS16949 at competitive prices also on the Polish market.

* The CN code is provided for information purposes only in accordance with the information we received from suppliers and we are not responsible for its correctness. CN code numbers may change due to the lack of clear supplier declarations and official interpretations.
