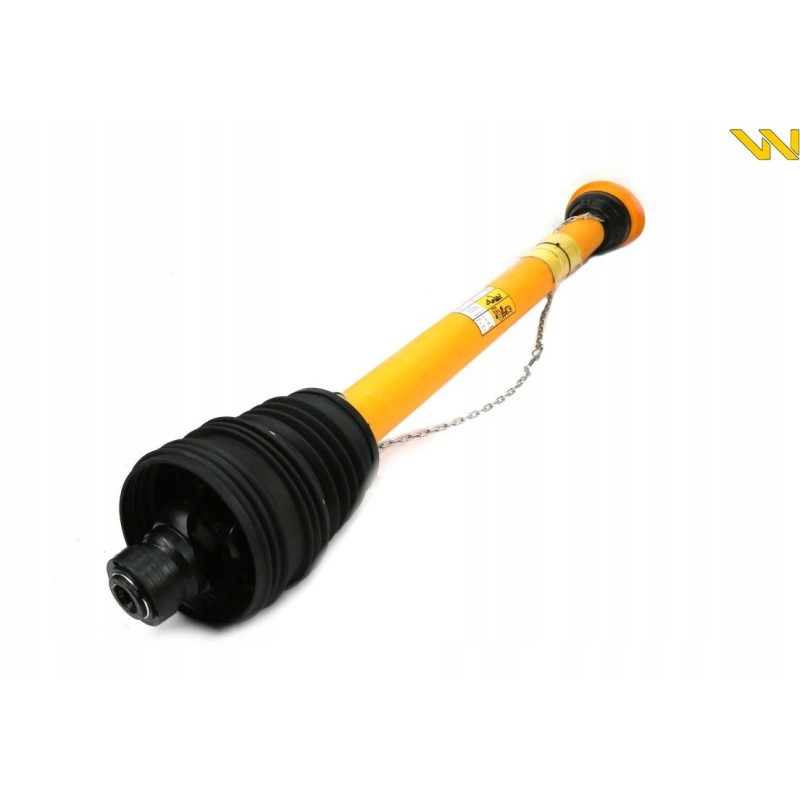

Articulated and telescopic shaft 1510 2290mm 1240nm width

PTO shaft 1510-2290mm 1240Nm wide-angle Z21 CE 2020 series 8R Waryński

Description

The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Specification

Clutch: Wide Angle

Inner tube thickness: 54 mm

Outer tube thickness: 63 mm

Nominal power: 70 ( 95 ) KW ( HP )

Attachment to the machine: 1 3/8' Z21 ' inch

Attachment to the tractor: 1 3/8' Z6 ' inch

Torque: 1240 Nm

Working angle: Max 35° temporarily 80°

Bearing diameter: 35.01 mm

Height cross: 106.3 mm

Type of telescopic connector: Triangular pipe

Minimum length: 1510 mm

Maximum length: 2290 mm

Works with: External fork - WR227801, Krzyżak - WR219801, Internal pipe fork. - WR219807, Outer pipe fork - WR219806, Inner pipe - WR2140800, Outer pipe - WR2141800, Housing - WR21981129,

Clutch disconnecting power: None

Inner pipe wall thickness: 5 mm

Outer pipe wall thickness: 4 mm

Article number: R. W8B1921510

Manufacturer: WARYŃSKI
