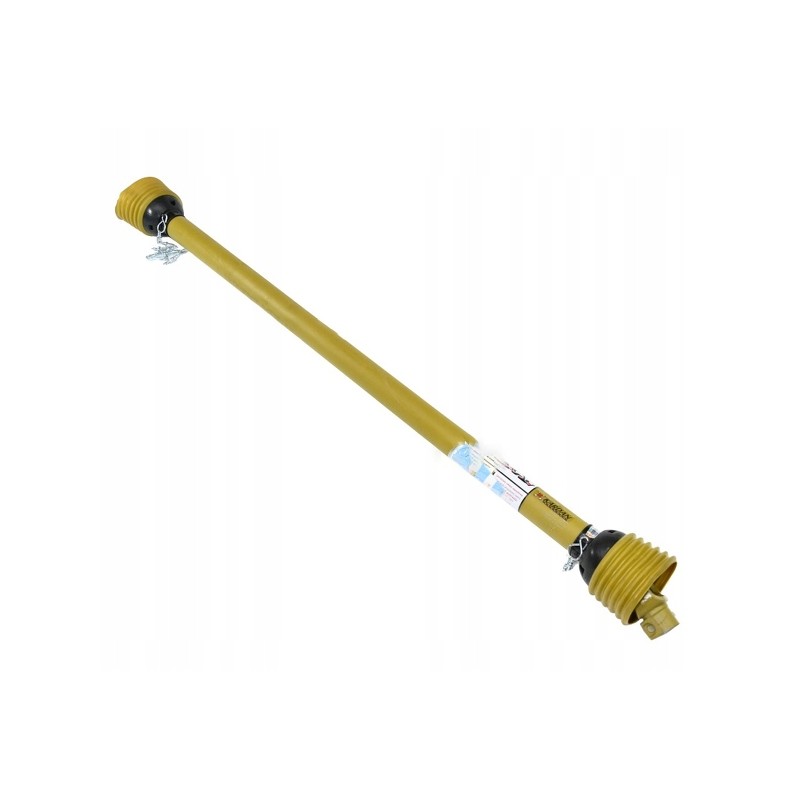

Articulated and telescopic shaft lemon 500nm 1610 255

PTO shaft lemon 500Nm, 1610-2559mm, cross 27x75 >

Article number: WT20-208

EAN code: 6090000373048

CN code*: 8483105090

Product description Continuous working torque: 500Nm

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles cross: 27x74.6mm

Pipe profile: lemon

Inner pipe dimensions: 34.5/40/4mm

Outer pipe dimensions: 41.3/48/3mm

Tractor protection: side latch

Machine protection: side latch

Working angle: max. 25° (temporary max. 45°)

Power at 540 rpm : 28kW

Torque at 540 rpm: 500Nm

Power at 1000 rpm: 44kW

Torque at 1000 rpm: 415Nm

About the manufacturer square meters to be able to produce for global markets, which are the USA, Germany, Japan, Italy, Australia and the Middle East.

Since 2019, X KARDAN has also been present with its products in Poland, providing the highest quality in accordance with its ISO 9001/TS16949 at competitive prices also on the Polish market.

* The CN code is provided for information purposes only in accordance with the information we received from suppliers and we are not responsible for its correctness. CN code numbers may change due to the lack of clear supplier declarations and official interpretations.
