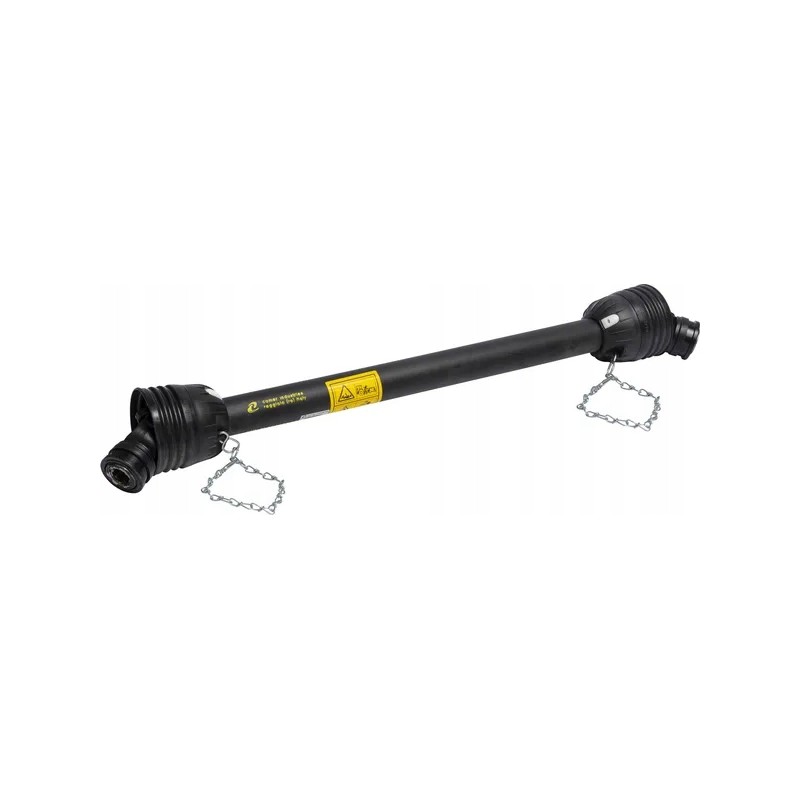

Cardan shaft t20 l 510 mm quick-connect fork

T20 joint shaft L=510 mm, Comer quick-connect fork

Part number: K. T200510ENC12C12

EAN:

Unit: Piece

Application:

Hay rake

Hay tedder

Field sprayers

Properties:

Lubrication frequency: 8 hours

CE marking present

Technical information:

Follow the Comer operating instructions

Max. dynamic capacity 540 rpm: 15 kW, 270 Nm

Max. dynamic capacity 1000 rpm: 23 kW, 220 Nm

Values at a deflection angle of 5° and a service life of 1000 hours

Outer diameter of the connection on the tractor side: 1-3/8 inch

Number of connection keys on the tractor side: 6

Type of connection on the tractor side: Flange gate valve

Accessories on the tractor side: Quick-connect fork

Machine side connection OD: 1-3/8 inch

Number of machine side connection keys: 6

Machine side connection type: Flanged gate valve

Machine side accessories: Quick-connect fork

Shaft size: T20

LDength: 510mm

Power at 540 rpm: 15kW

Power at 1000 rpm: 23kW

Diameter of the cross sleeve on the tractor side: 23.8mm

Length of the cross on the tractor side: 61.3mm

Diameter cross sleeve on the machine side: 23.8mm

Length of the cross on the machine side: 61.3mm

Outer pipe wall thickness: 3.2mm

Outer diameter. larger outer pipe: 36mm

Wall thickness of the inner pipe: 4mm

Larger external diameter of the inner pipe: 29mm

Pipe profile shape: Triangular

Dynamic torque max.: 450N m

Reference number OE: 07.225.025.11
