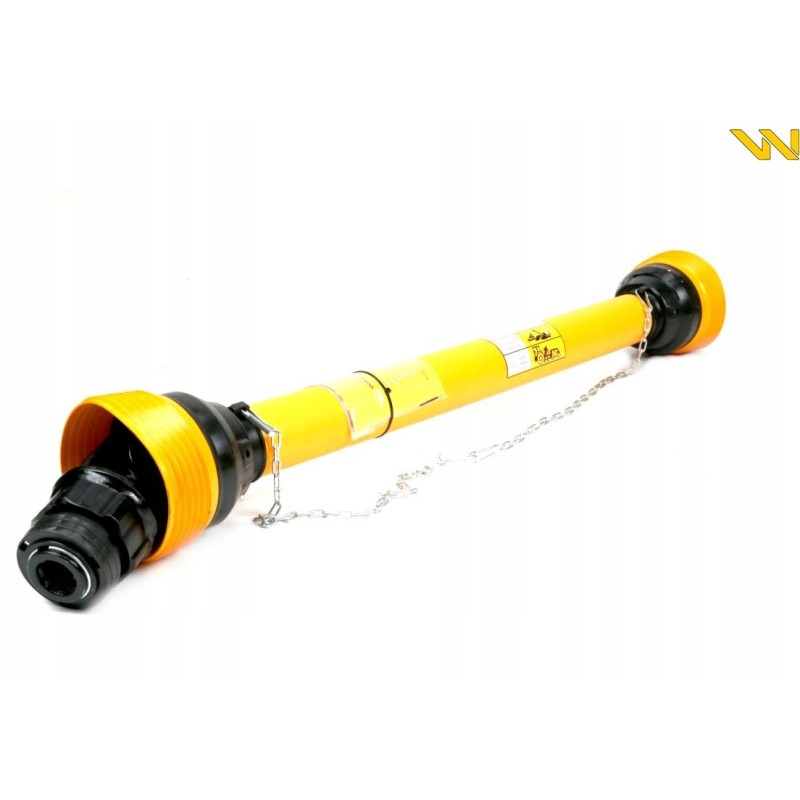

Articulated and telescopic shaft 1290 2050mm 620nm coupling

PTO shaft 1290-2050mm 620Nm one-way clutch 60290 CE 2020 series 5R Waryński

Description

Shaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Specification

Clutch: One-way clutch

Maximum length: 2050 mm

Minimum length: 1210 mm

Inner tube thickness: 45 mm

Outer tube thickness: 51.5 mm

Nominal power: 35 ( 47 ) KW (HP)

Mounting to the machine: 1 3/8' Z6' inch

Attachment to the tractor: 1 3/8' Z6' inch

Torque: 620 Nm

Working angle: Max 17°

Bearing diameter: 30.2 mm

Cross height: 79.4 mm

Type of telescopic connector: Triangular pipe

Works with: External fork - WR227501, WR215520, Krzyżak - WR219501, Internal pipe fork. - WR219507, Outer pipe fork - WR219506, Inner pipe - WR23431055, Outer pipe - WR23421090, Housing - WR21951129,

Inner pipe wall thickness: 3.8 mm

Pipe wall thickness external: 3 mm

Clutch disengaging torque: None

Article number: R. W5B1101210

Manufacturer: WARYŃSKI
