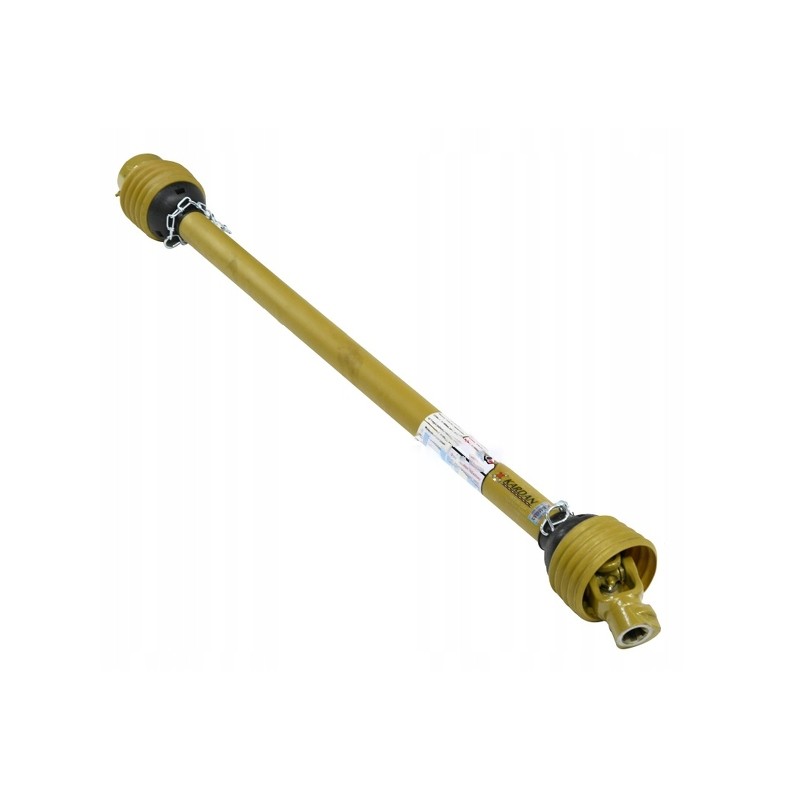

Articulated and telescopic shaft lemon 335nm 1210 198

PTO shaft lemon 335Nm, 1210-1989mm, cross 24x61, one-way clutch

Article number: WT20-164

EAN code: 6090000373000

CN code*: 8483105090

Product description Continuous working torque: 335Nm

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles cross: 23.8x61, 2mm

Tube profile: lemon

Inner tube size: 34.5/40/4mm

Outer tube size: 41.3/48/3mm

Tractor protection: Side latch

Machine protection: Side latch

Working angle: max. 25° (temporary max. 45°)

Power at 540 rpm: 20kW

Torque at 540 rpm: 335Nm

Power at 1000 rpm: 31kW

Torque at 1000 rpm: 295Nm

About the manufacturer square meters to be able to produce for global markets, which are the USA, Germany, Japan, Italy, Australia and the Middle East.

Since 2019, X KARDAN has also been present with its products in Poland, providing the highest quality in accordance with its ISO 9001/TS16949 at competitive prices also on the Polish market.

* The CN code is provided for information purposes only in accordance with the information we received from suppliers and we are not responsible for its correctness. CN code numbers may change due to the lack of clear supplier declarations and official interpretations.
