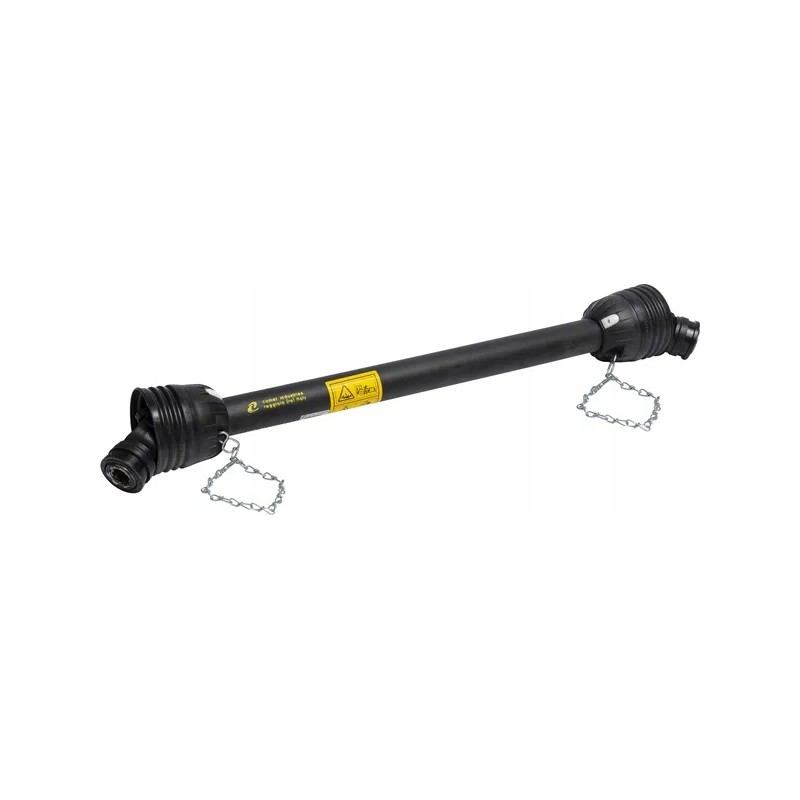

Cardan shaft t90 l 560 mm quick-connect fork

T90 joint shaft L=560 mm, Comer quick-connect fork

Part number: K. T900560ENC12C12

EAN:

Unit: Piece

Application:

Heavy soil tillage machines

Wood chippers

Stem grinder

Features:

Lubrication interval: 8 hours

CE marking present

Technical information:

Follow the Comer operating instructions

Max. dynamic power 540 rpm: 88 kW, 1560 Nm

Max. dynamic power 1000 rpm: 140 kW, 1340 Nm

Values at a deflection angle of 5° and a service life of 1000 hours

Outer diameter of the connection on the tractor side: 1-3/8 inch

Number of connection keys on the tractor side: 6

Type of connection on the tractor side: Flange gate valve

Accessories on the tractor side: Quick-connect fork

Machine side connection OD: 1-3/8 inch

Number of machine side connection keys: 6

Machine side connection type: Flanged gate valve

Machine side accessories: Quick-connect fork

Shaft size: T90

LDength: 560mm

Power at 540 rpm: 88kW

Power at 1000 rpm: 140kW

Diameter of the cross arm sleeve on the tractor side: 41mm

Length of the cross arm on the tractor side: 108mm

Diameter of the cross arm sleeve on the tractor side machine: 41mm

Length of the cross on the machine side: 108mm

Coupling type: n/a

Outer pipe wall thickness: 4mm

Larger outer diameter of the outer tube: 63mm

Wall thickness of the inner tube: 5mm

Larger external diameter of the inner tube: 54mm

Max. static torque: 1560N ·m

Dynamic torque max.: 2900N ·m

Reference number OE: 0792502411
