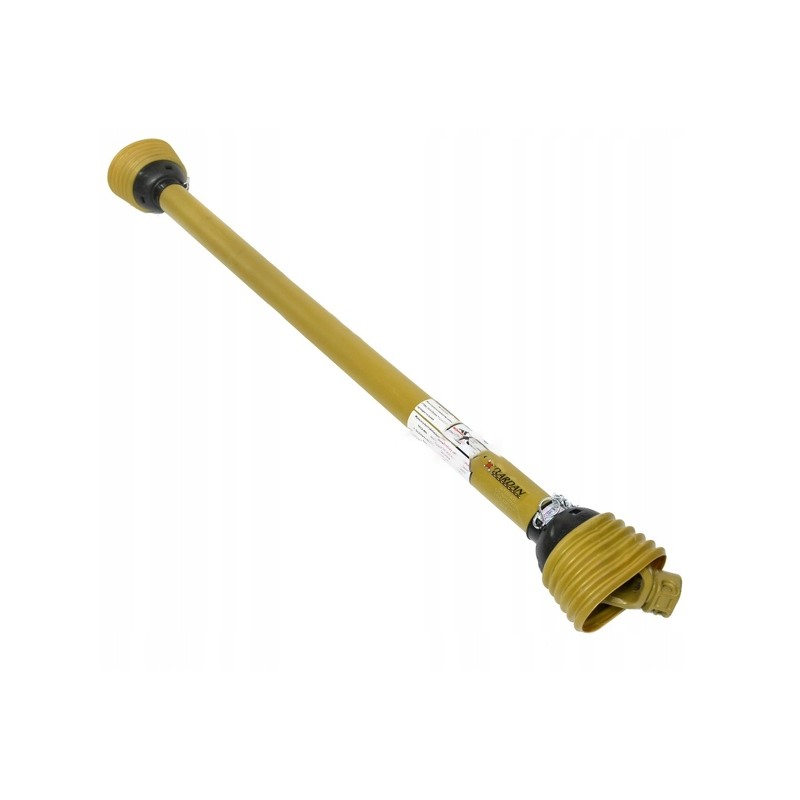

Articulated and telescopic shaft lemon 575nm 1410 226

PTO shaft lemon 575Nm, 1410-2261mm, cross 27x75, X-pin clutch Cardan

Collective packaging: 1 pc.

Weight: 15kg

VAT: 23 %

Article number: WT20-455

EAN code: 6090000373284

CN code*: 8483105090

Product description Continuous operating torque: 575Nm

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles cross: 27x74.6mm

Pipe profile: lemon

Inner pipe dimensions: 39.5/49/5mm

Outer pipe dimensions: 48/57.5/4mm

Tractor protection: side latch

Machine protection: side latch

Working angle: max. 25° (temporary max. 45°)

Power at 540 rpm: 32kW

Torque at 540 rpm: 575Nm

Power at 1000 rpm: 52kW

Torque at 1000 rpm /min: 450Nm

About the manufacturer on an area of over 20 thousand square meters to be able to produce for global markets, which are the USA, Germany, Japan, Italy, Australia and the Middle East.

Since 2019, X KARDAN has also been present with its products in Poland, providing the highest quality in accordance with its ISO 9001/TS16949 at competitive prices also on the Polish market.
