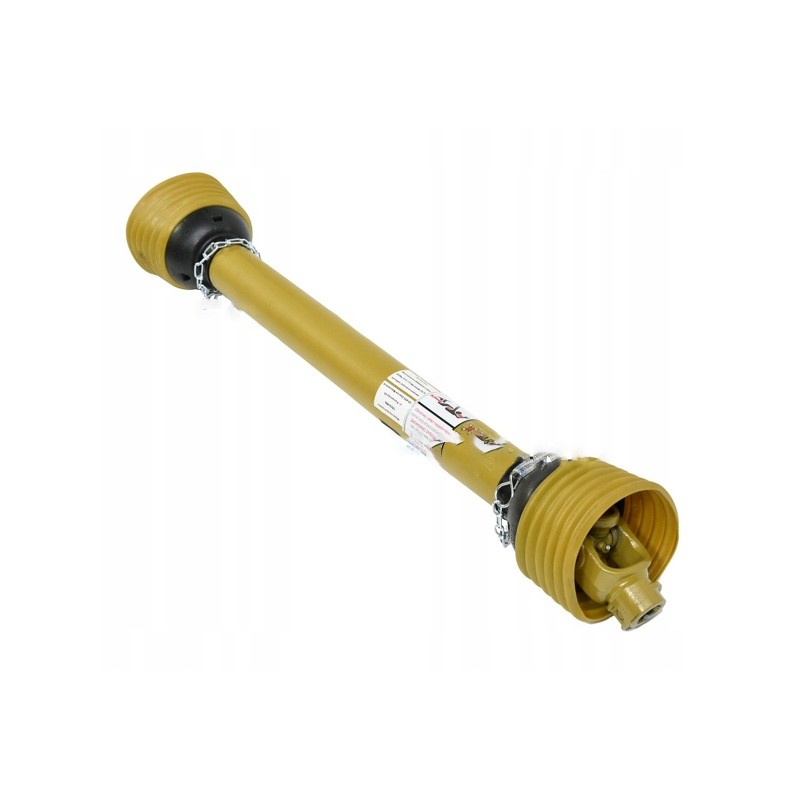

Articulated and telescopic shaft lemon 695nm 1010 170

PTO shaft lemon 695Nm, 1010-1707mm, cross 32x76, one-way clutch

Article number: WT20-362

EAN code: 6090000373130

CN code*: 8483105090

Product description Continuous working torque: 695Nm

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles cross: 32x76mm

Pipe profile: lemon

Inner pipe dimensions: 39.5/49/5mm

Outer pipe dimensions: 48/57.5/4mm

Tractor protection: side latch

Machine protection: side latch

Working angle: max. 25° (temporary max. 45°)

Power at 540 rpm /min: 39kW

Torque at 540 rpm: 695Nm

Power at 1000 rpm: 61kW

Torque at 1000 rpm: 580Nm

About the manufacturer 20 thousand square meters to be able to produce for global markets, which are the USA, Germany, Japan, Italy, Australia and the Middle East.

Since 2019, X KARDAN has also been present with its products in Poland, providing the highest quality in accordance with its ISO 9001/TS16949 at competitive prices also on the Polish market.
