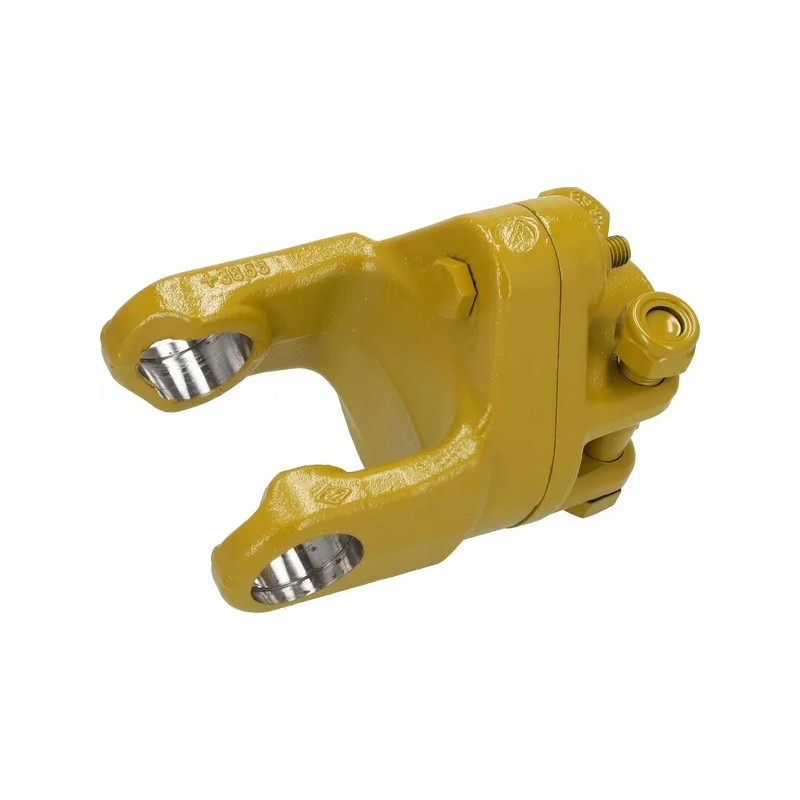

Walterscheid KB61 20 1 shear pin clutch

Clutch, shear pin, Walterscheid, KB61/20, 1 3/4 Z20, W2500 series

Part number: K. 5717918

EAN: 8435194028851

Unit : Art

Product description: Shear element overload clutches for manure pumps, shredders and light balers, among others.

Specifications:

Complete drive interruption

possible to restore by replacing the overload pin

Advantages:

Prevents damage

Simple repair

Product details:

Protection against blockages and overload

Power transfer via overload pin

Complete interruption of the drive

Repairable by replacing the overload pin

Independent of the direction of rotation

Application:

Fertilizer pump

forage harvesters

light balers

Properties:

Regardless of the direction of rotation

power transfer via overload pin

Technical information: Protection against blockages and overload

Benefits:

Prevents consequential damage

convenient to restore

Dynamic torque max.: 2920N m

Screw thread diameter shear bolts: M10

Shear bolt thread length: 60

RShear bolt spacing radius: 56

Shear bolt hardness: 8.8

Type - code: KB61/20

Maximum rotational speed: 1000 rpm

Shaft/shaft size:

W2500

P500< p>

DOuter diameter: 156mm

AOutside diameter of the connection from the tractor side: 1-3/4 inch

Number of keys in the connection from the tractor side: 20

Machine side connection type: Clamping screw (non-tangential)

Reference number OE: 1382986
