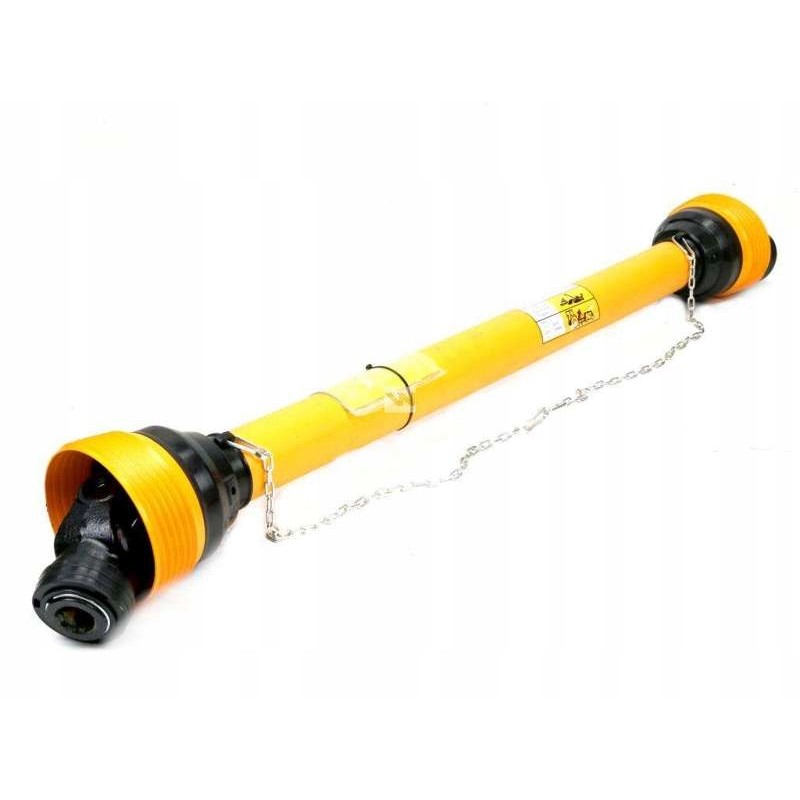

PTO shaft 1210 1650mm 620nm fork z21 60270

PTO shaft 1210-1650mm 620Nm fork Z21 60270 CE 2020 series 5R WARYŃSKI PTO shaft 1210-1650mm 620Nm fork Z21 60270 CE 2020 series 5R WARYŃSKI. The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Mounting to the tractor: 1 3/8' Z21

Mounting to the machine: 1 3/8' Z6

Type of telescopic connector: Triangular tube

Minimum length: 1210 mm

Maximum length: 2050 mm

Nominal power: 620 Nm

Clutch: None

Clutch disengaging power: None

Inner tube thickness: 45 mm / 3.8 mm

Outer tube thickness: 51.5 mm / 3 mm

Bearing diameter: 30.2 mm

Cross height: 79.4 mm

Manufacturer: Waryński Original

Product code: W5B2B11210

Cross height: 79.4 mm

Bearing diameter: 30.2 mm

Outer tube thickness: 51.5 mm / 3 mm

Inner tube thickness: 45 mm / 3.8 mm

Clutch disengaging power: 1200 Nm

Clutch: Friction clutch

Nominal power: 620 Nm

Maximum length: 1250 mm

Minimum length : 860 mm

Mounting to the machine: 1 3/8' Z6

Mounting to the tractor: 1 3/8' Z6
