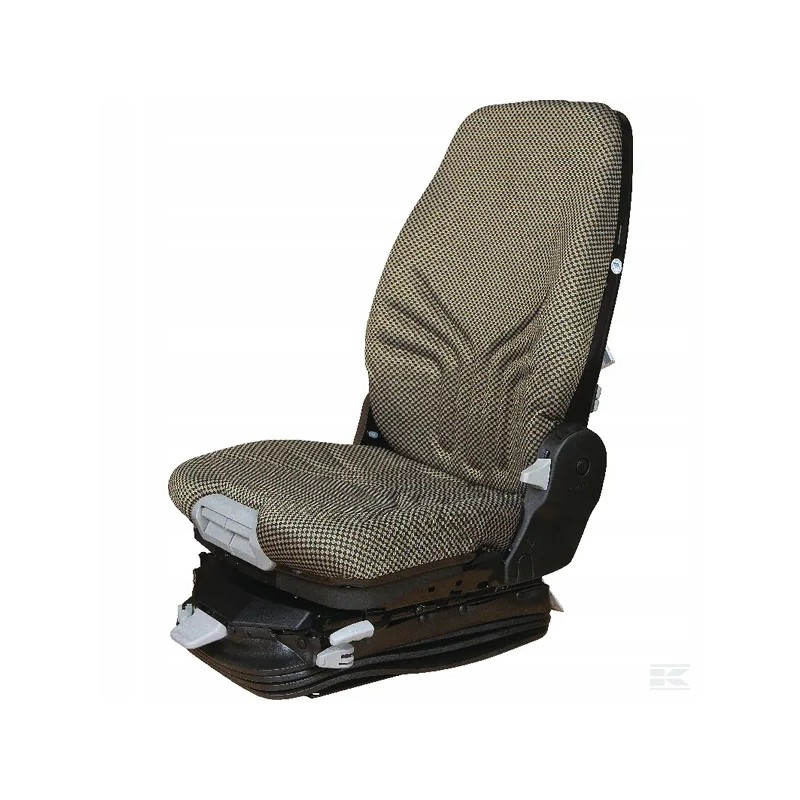

actimo xl 12v seat

Actimo XL 12V seatPart number: G1294557

Unit: Piece

Specifications:

Pneumatic support of intervertebral discs

Automatic weight adjustment

With blocked longitudinal horizontal shock absorption

Application: For medium and large construction machines

Properties:

APS: automatic positioning system

Passive air conditioning system, activated carbon filter

Seat cushion depth and inclination adjustment

Seat cushion width 490 mm

Spring deflection 100 mm

Stepless height adjustment 80 mm, pneumatically assisted

Longitudinal adjustment 210 mm

Backrest inclination adjustment, max. 80°

Lumbar spine support, adjustable pneumatically using 2 compressors

Adjustment depending on body weight 50 - 130 kg

Weight 43 kg

Narrow suspension (308mm)

Consists of:

Actimo XL seat

Without armrests

Without backrest extension

Benefits:

Great seating comfort

Work without fatigue

Good lateral support

Suspension type: Pneumatic

Upholstery material: Fabric

Upholstery color: Brown

Total width: 490 mm

Armrests included: No

Headrest included: No

Seat belts included: No

Switch included: No

Auto-adjustment to the user's weight: Yes

Model: MSG95A/722

Backrest angle adjustment: 30 °

Height adjustment: 8 cm

Depth: 629 mm

Minimum working load: 50 kg

Suspension stroke: 10 cm

Max working load: 130 kg

Total height: 1078 mm

Heated: No

Length total: 629 mm

Supply voltage: 12 V
