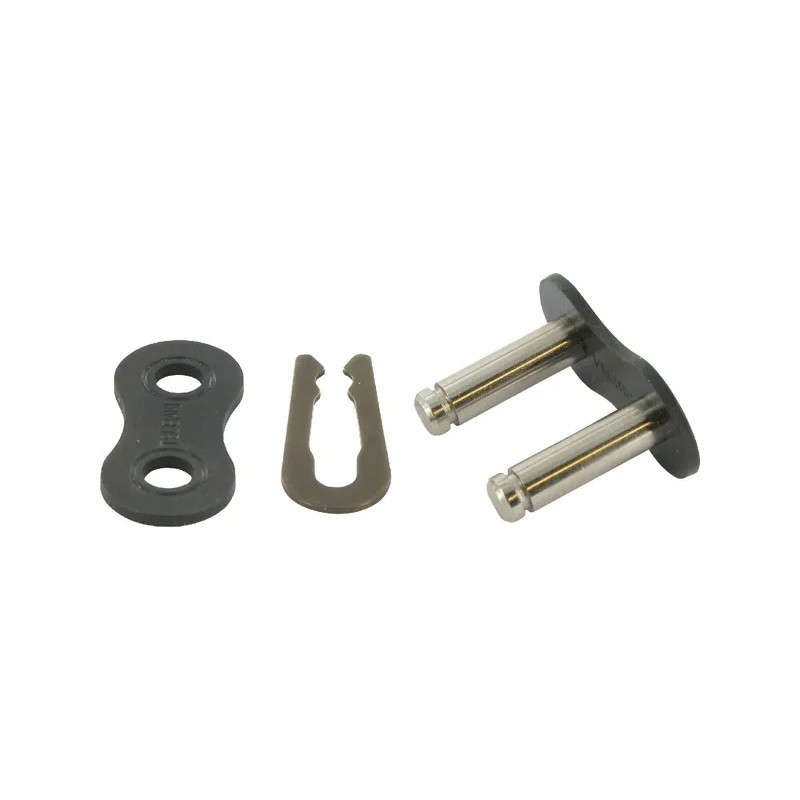

Lambda chain lock 5 8

Chain lock, Lambda 5/8

Part number: K.RS10B1SLAMBDA

EAN: 8718472591996

Unit: Art

Specifications: Connecting link with patented extruded ring design

Application: For Lambda duplex roller chains Benefits: Offers up to 100% of the strength of the stock chain Link stroke: 15.875mm

Link pitch: 5/8 inch

Internal width: 9.65mm Internal Width: 3/8 inch

Internal link width: 12.65mm External width: 19.1mm Pin length: 20.8mm

Pin diameter: 5.08mm

Roll diameter: 10.16mm Height: 14.7mm

Size L1: 9.55mm

Size L2: 11.25mm

ISO size: 10 B-1

Internal cell wall thickness: 1.5mm Outer cell wall thickness: 1.5mm DIN standard: 8187

Type: Single

Product category: Chain lock
