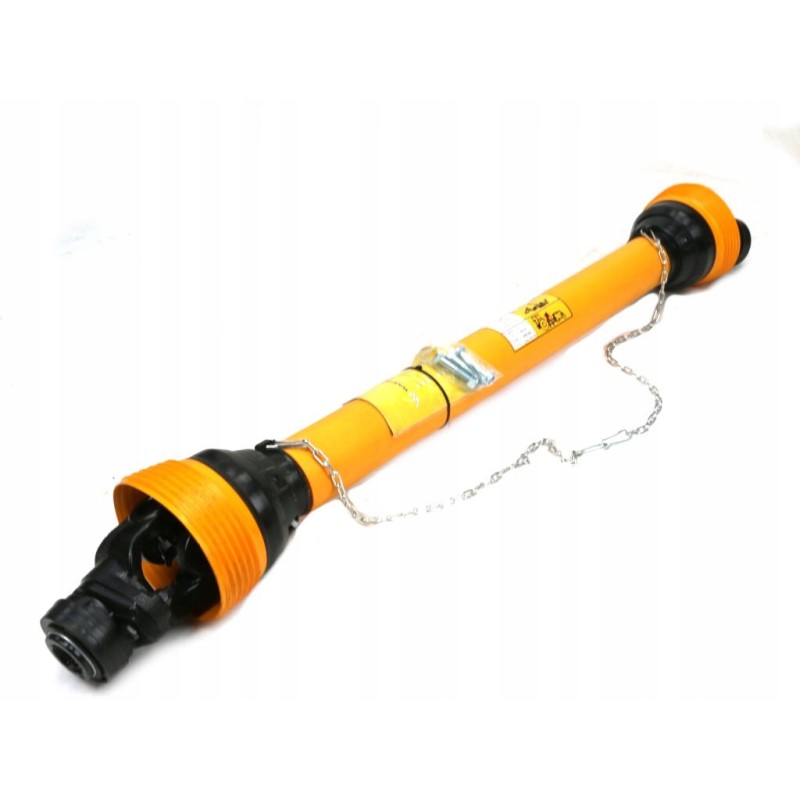

PTO shaft 860 1250 830 Warynski clutch

PTO shaft 860-1250mm 830Nm clutch with Z21 pin 2500 Nm CE 2020 6R series Waryński W6B172860 PTO shaft 860-1250mm 830Nm clutch with Z21 pin 2500 Nm CE 2020 6R series Wary Polish W6B172860 Shaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

*Specification:

*Type of telescopic connector: Triangular pipe -

*Works with: External fork -WR227601, WR227602, Cross connector - WR219601, Internal pipe fork . - WR219607, Widłak pipe outdoors - WR219606, Internal pipe - WR2363705, WR2140600 Outdoor pipe - WR2362735, WR2141600, housing - WR22961129, -

* *Trich wall pipe wall: 5.5 mm

*Outer tube wall thickness: 4 mm

*Coupling: pin coupling -

*Maximum length: 1250 mm

*Minimum length: 860 mm

*Inner tube thickness: 45 mm

*Outer tube thickness: 54 mm

*Nominal power: 47 (64) KW (HP)

*Mounting to machine: 1 3/8' Z21' inch

*Mounting to tractor: 1 3/8' Z6' inch

*Torque: 830 Nm

*Working angle: Max 17° -

*Bearing diameter: 30.2 mm

* Cross height: 91.6 mm

*Producer: Waryński Original
