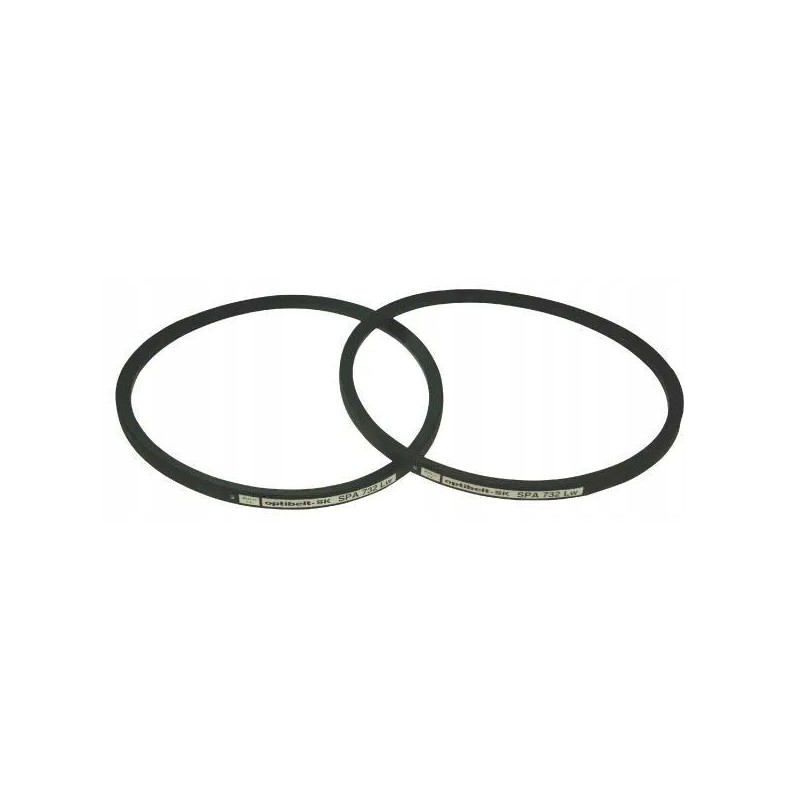

V-belt optibelt spz 10x2650

Optibelt V-belt, SPZ 10x2650

Part number: K.SPZ2650

EAN: 4014486081367

Unit: Art

Product description:

High performance V-belts DIN7753 narrow profile SPZ / 10

Does not stretch

High efficiency

Requires little maintenance

Long service life

Heavy industry

Compressors

Textile machines

Fans

Pumps

Printing machines

Advantages:

Requires little maintenance

Long service life

High efficiency

Low stretch

Rare, short downtime

Product details:

V-belts in the S=C version can be used as a set

Inner length = division length - 38 mm

Outer length = division length + 13 mm

Profile: SPZ

Base length: 2650mm

Width: 9.7mm

Bottom width: 6.4mm

Height: 8mm

Internal length: 2612mm External length: 2663mm

Material: Rubber

Core material: Polyester

Operating temperature min.: -40°C

Operating temperature max.: 70°C

Min. pulley diameter: 63mm Number of sections {grooves}: 1

Punched: No

Small length tolerance: Yes

Teething: No

To the tensioner: No

Oil resistance: Yes

Discharge of electrical charges: No

With additional outer layer: Yes

Quantity in package: 1 pc.
