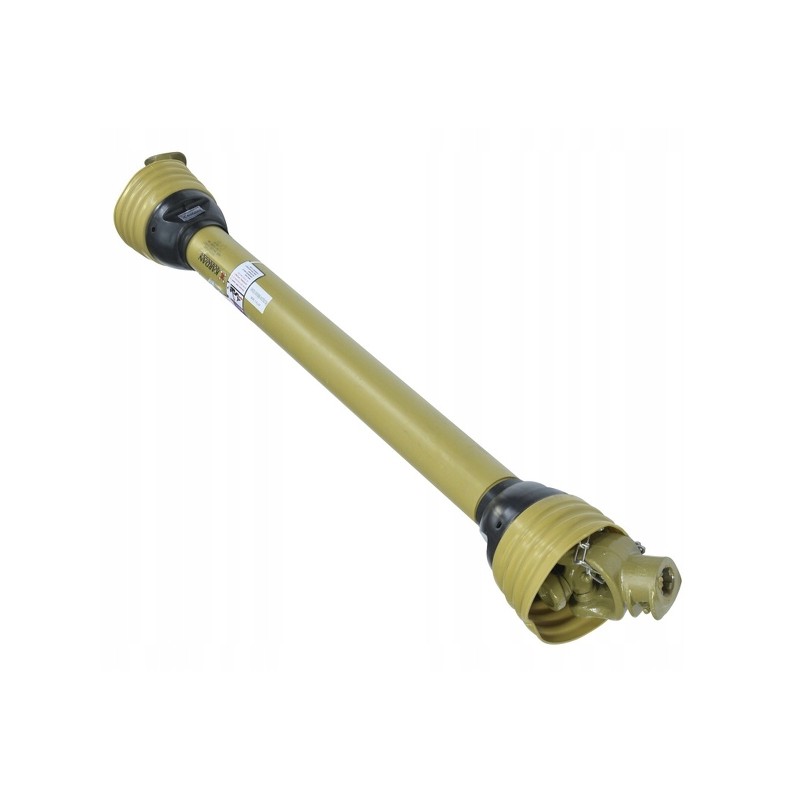

Milled articulated and telescopic shaft 830nm 1110 1

Milled PTO shaft 830Nm, 1110-1620mm, cross 30x92 * p>

Article number: WT21-306

EAN code: 6090000344413

CN code*: 8483105090

Product description Continuous working torque: 830Nm< p>

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles cross: 30.2x92mm

Tube profile: z-12

Internal shaft dimensions: 40mm

Outer tube dimensions: 58x3mm

Tractor protection: side latch

Machine protection: side latch

Working angle: max. 25° (temporary max. 45°)

Power at 540 rpm: 47kW

Torque at 540 rpm: 830Nm

Power at 1000 rpm: 74kW

Torque at 1000 rpm: 710Nm

Length shaft (from the axis of the cross to the axis of the cross):

minimum: 1110mm

maximum: 1620mm

About the manufacturer X KARDAN is a Polish brand representing the manufacturer of universal joint shafts telescopic shafts for all types of agricultural machines and transmission shafts for industrial machines.

The company employs over 200 employees to cover an area of over 20,000. square meters to be able to produce for global markets, which are the USA, Germany, Japan, Italy, Australia and the Middle East.

Since 2019, X KARDAN has also been present with its products in Poland, providing the highest quality in accordance with its ISO 9001/TS16949 at competitive prices also on the Polish market.

* The CN code is provided for information purposes only in accordance with the information we received from suppliers and we are not responsible for its correctness. CN code numbers may change due to the lack of clear supplier declarations and official interpretations.
