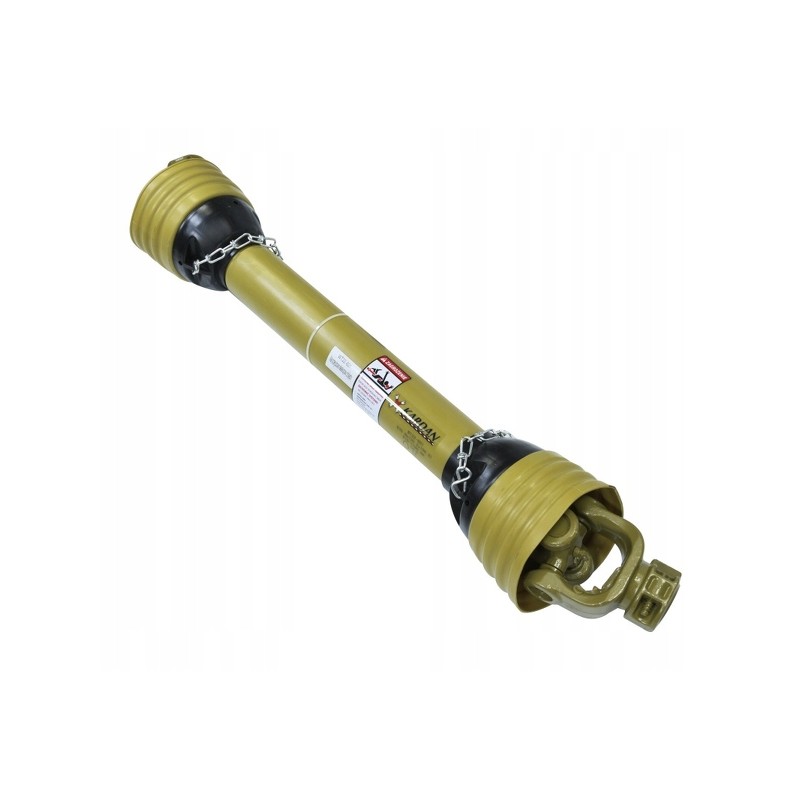

Articulated and telescopic shaft, triangular shaft, 970nm 81

PTO shaft triangular 970Nm, 810-1190mm, cross 30x106 p>

Article number: WT22-601

EAN code: 6090000344741

CN code*: 8483105090

Product description Continuous working torque: 970Nm< p>

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles cross: 30.2x106.5mm

Tube profile: triangle

Inner tube dimensions: 45x5.5mm

Outer tube dimensions: 54x4mm

Tractor protection: side latch< p>

Machine protection: side latch

Working angle: max. 25° (temporary max. 45°)

Power at 540 rpm: 55kW

Torque at 540 rpm: 970Nm

Power at 1000 rpm: 87kW

Torque at 1000 rpm: 830Nm

Shaft length (from the axis of the cross to the axis of the cross):

minimum: 810mm

maximum: 1190mm

About the manufacturer X KARDAN is a Polish brand representing the manufacturer of universal shafts articulated-telescopic machines for all types of agricultural machines and transmission shafts for industrial machines.

The company employs over 200 employees and covers an area of over 20,000. square meters to be able to produce for global markets, which are the USA, Germany, Japan, Italy, Australia and the Middle East.

Since 2019, X KARDAN has also been present with its products in Poland, providing the highest quality in accordance with its ISO 9001/TS16949 at competitive prices also on the Polish market.

* The CN code is provided for information purposes only in accordance with the information we received from suppliers and we are not responsible for its correctness. CN code numbers may change due to the lack of clear supplier declarations and official interpretations.
