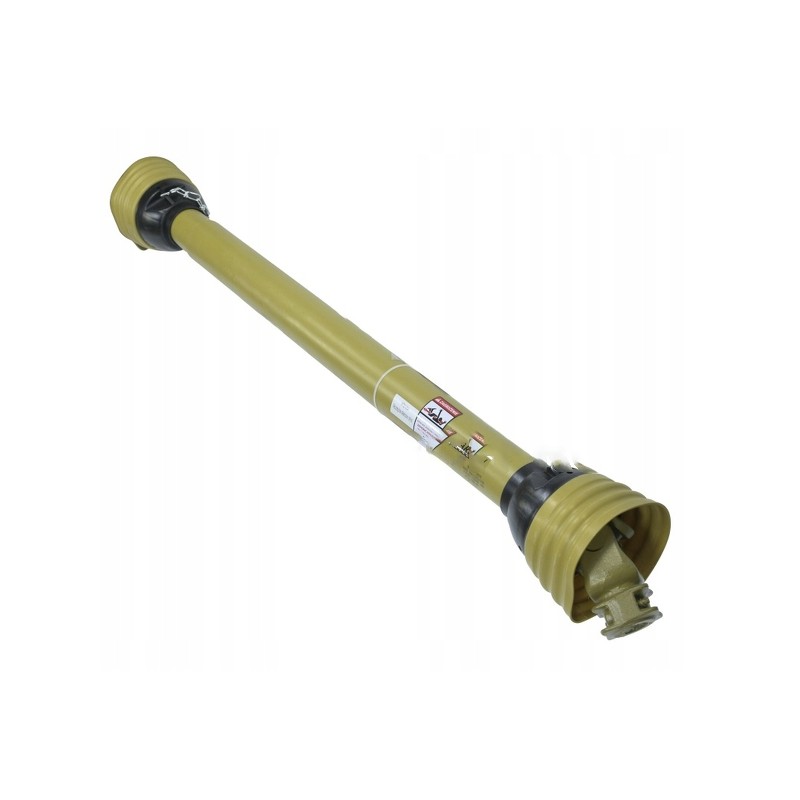

Articulated and telescopic shaft lemon 695nm 1210 189

PTO shaft lemon 695Nm, 1210-1890mm, cross 32x76 p>

Article number: WT20-304

EAN code: 6090000344048

CN code*: 8483105090

Product description Continuous working torque: 695Nm< p>

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles cross: 32x76mm

Pipe profile: lemon

Inner pipe dimensions: 39.5/49/5mm

Outer pipe dimensions: 48/57.5/4mm

Tractor protection: side latch

Machine protection: side latch

Working angle: max. 25° (temporary max. 45°)

Power at 540 rpm/ min: 39kW

Torque at 540 rpm: 695Nm

Power at 1000 rpm: 61kW

Torque at 1000 rpm: 580Nm

Shaft length (from the axis of the cross to the axis of the cross):

minimum: 1210mm

maximum: 1890mm

About the manufacturer X KARDAN is a Polish brand representing a manufacturer of universal PTO shafts for all types of agricultural machines and transmission shafts for industrial machines.

The company employs over 200 employees and covers an area of over 20,000. square meters to be able to produce for global markets, which are the USA, Germany, Japan, Italy, Australia and the Middle East.

Since 2019, X KARDAN has also been present with its products in Poland, providing the highest quality in accordance with its ISO 9001/TS16949 at competitive prices also on the Polish market.

* The CN code is provided for information purposes only in accordance with the information we received from suppliers and we are not responsible for its correctness. CN code numbers may change due to the lack of clear supplier declarations and official interpretations.
