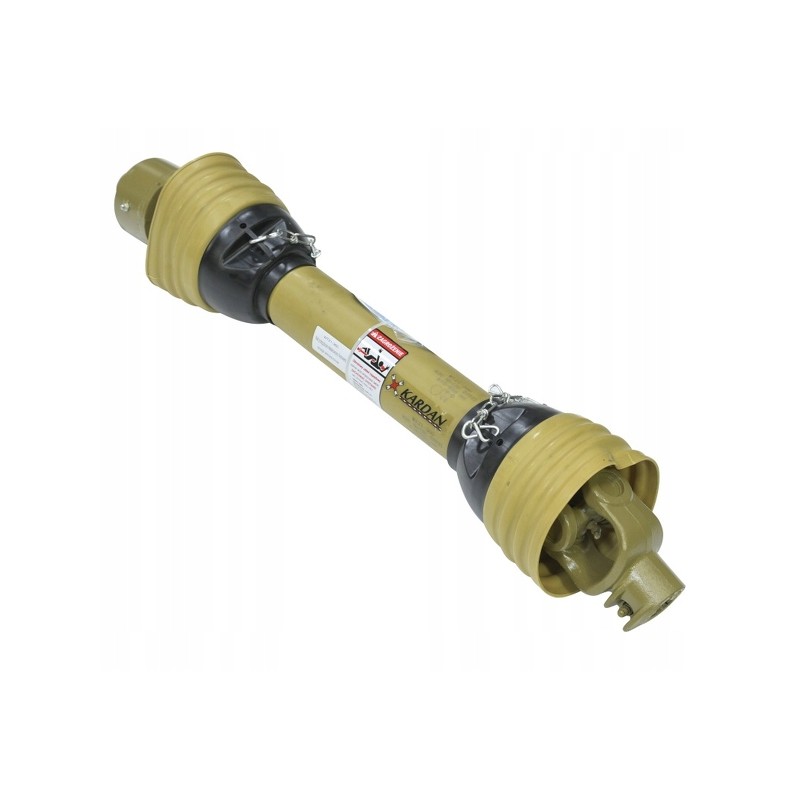

Milled articulated and telescopic shaft 830nm 610 90

Milled PTO shaft 830Nm, 610-906mm, cross 30x92, one-way clutch * : 23%

Article number: WT21-360

EAN code: 6090000344451

CN code*: 8483105090

Product description Operating torque continuous: 830Nm

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles cross: 30 ,2x92mm

Tube profile: z-12

Inner tube size: 40mm

Outer tube size: 58x3mm

Tractor protection: latch side

Machine protection: side latch

Clutch type: one-way

Working angle: max. 25° (temporary max. 45°)

Power at 540 rpm: 47kW

Torque at 540 rpm: 830Nm

Power at 1000 rpm: 74kW

Torque at 1000 rpm: 710Nm< p>

Shaft length (from the axis of the cross-head to the axis of the cross-head):

minimum: 610mm

maximum: 906mm

About the manufacturer X KARDAN is Polish a brand representing a manufacturer of universal PTO shafts for all types of agricultural machines and transmission shafts for industrial machines.

The company employs over 200 employees and covers an area of over 20,000. square meters to be able to produce for global markets, which are the USA, Germany, Japan, Italy, Australia and the Middle East.

Since 2019, X KARDAN has also been present with its products in Poland, providing the highest quality in accordance with its ISO 9001/TS16949 at competitive prices also on the Polish market.

* The CN code is provided for information purposes only in accordance with the information we received from suppliers and we are not responsible for its correctness. CN code numbers may change due to the lack of clear supplier declarations and official interpretations.
