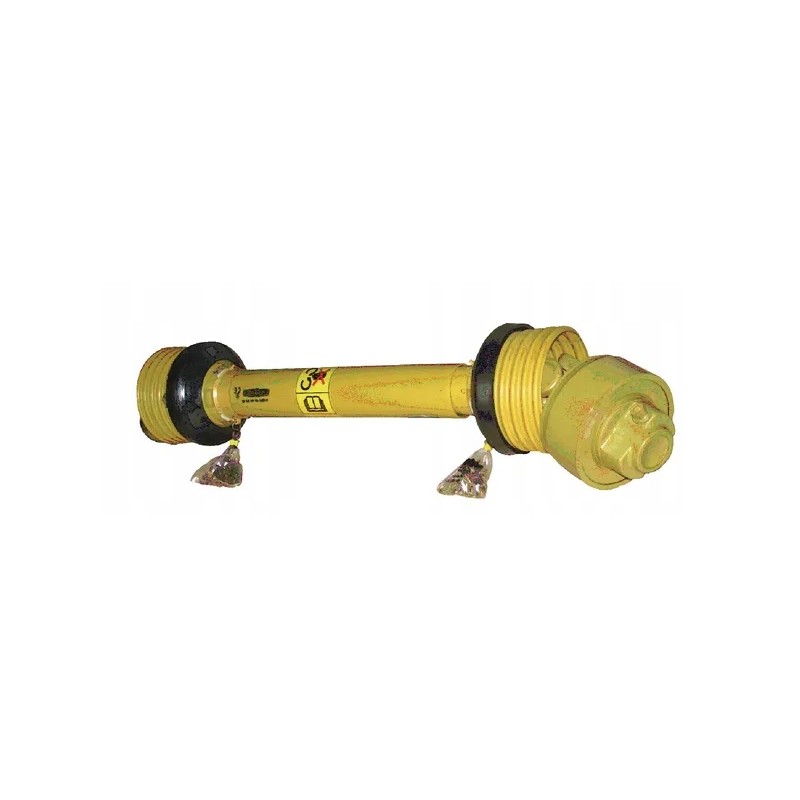

Cardan shaft w2500 l 710 mm cam clutch

W2500 propshaft L= 710 mm, Walterscheid cam clutch

Part number: K. W25007105911743

EAN:

Unit: Piece

Tractor side connection OD: 1-3/8 inch

Number of tractor side connection keys: 6

Tractor side connection type: Flange gate valve

Tractor-side accessories: Quick-connect fork

Outer diameter of the machine-side connection: 1-3/8 inch

Number of machine-side connection keys: 6

Type machine side connections: Clamping cone

Machine side accessories: Cam clutch

Shaft size: W2500

Length: 710mm

Power at 540 rpm: 66kW

Power at 1000 rpm: 102kW

Diameter of the cross sleeve on the tractor side: 36mm

Length of the cross on the tractor side: 89mm

Diameter of the cross sleeve on the machine side: 36mm

Length of the cross on the machine side: 89mm

Clutch type: K64/22R

Maximum clutch torque: 2200N m

Outer tube profile type: S5

Outer tube wall thickness: 4.5mm

Larger outer diameter of the tube outer diameter: 61mm

Type of inner pipe profile: S4

Larger outer diameter of inner pipe: 51mm

Pipe profile shape: Star

Max. static torque: 6000N m

Cover type: SD25

OE reference number: 1691387
