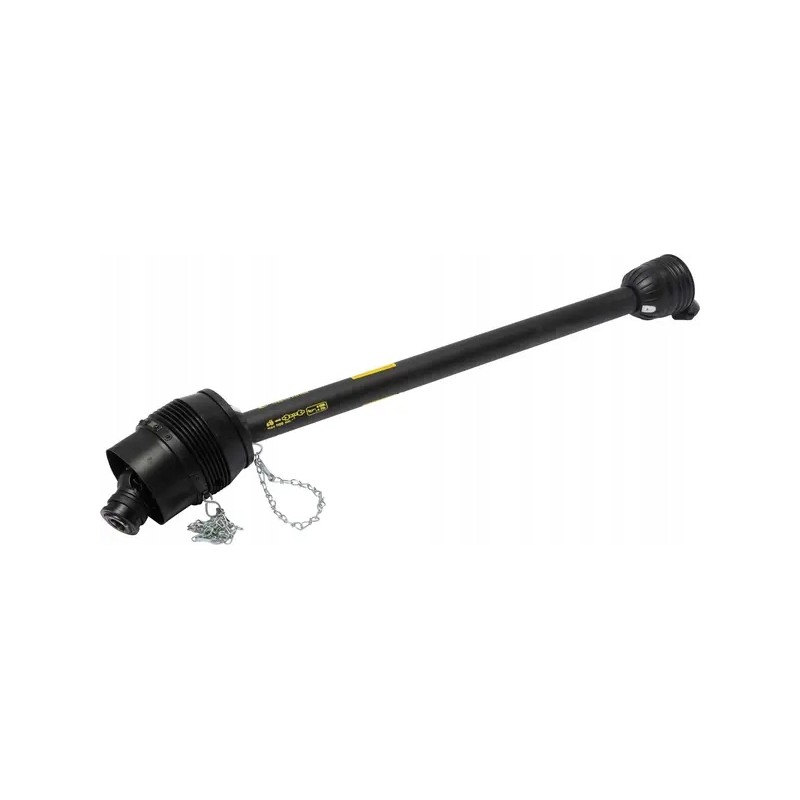

Wide angle joint shaft v cvj 60 l 1210 mm com

Wide angle drive shaft V CvJ 60 L=1210 mm Comer

Part number: K. VCVJ601210

EAN:

Unit: Piece

Tractor side connection OD: 1-3/8 inch

Number of tractor side connection keys: 6

Tractor side connection type: Flange gate valve

Tractor-side accessories: Quick-connect fork

Outer diameter of the machine-side connection: 1-3/8 inch

Number of machine-side connection keys: 6

Type connections on the machine side: Flanged gate valve

Accessories on the machine side: Quick-connect fork

Shaft size: V CvJ 60

Length: 1210mm

Power at 540 rpm: 50kW

Power at 1000 rpm: 77kW

Diameter of the cross sleeve on the tractor side - longer part: 30.2mm

Diameter of the cross sleeve on the tractor side: 30.2mm

Length of the cross on the tractor side - longer part: 101.4mm

Length of the cross on the tractor side: 95.4mm

Diameter of the cross sleeve on the machine side: 30.2mm

Length of the cross on the machine side: 92mm

Coupling type: n/a

Pipe wall thickness outer diameter: 3.2mm

Larger external diameter of the outer tube: 57.6mm

Wall thickness of the inner tube: 4.8mm

Larger external diameter of the inner tube : 50.8mm

Tube profile shape: Star

Dynamic torque max.: 1510N m

Reference number OE: 98611210EN00206304
