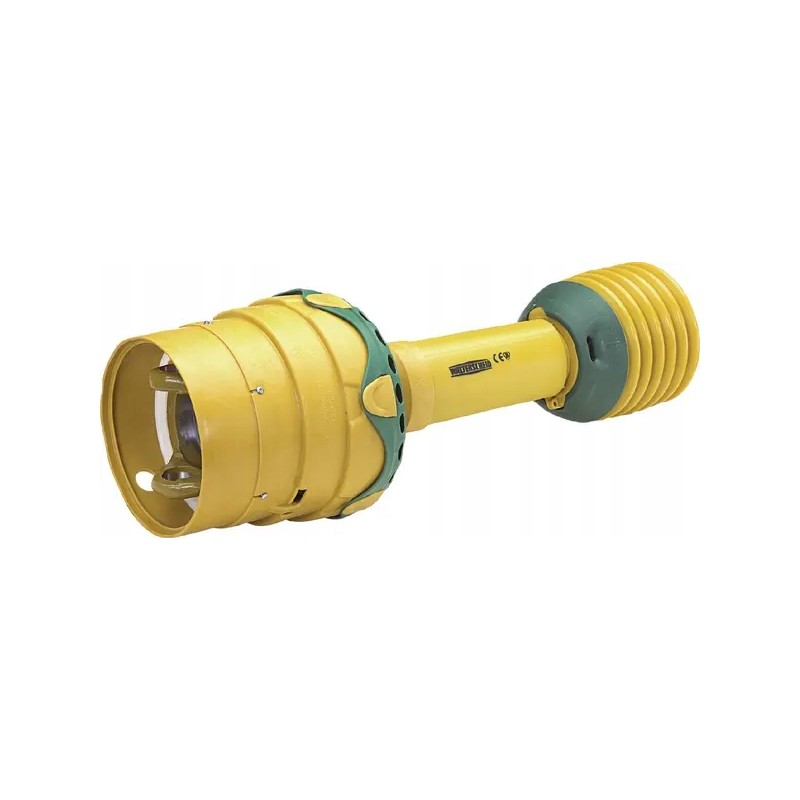

PTO shaft without forks WWE 2280 l 1210 mm shaft

PTO shaft without forks WWE 2280 L=1210 mm Walterscheid

Part number: K. WWE22801210OG

EAN:

Unit: Piece

Type of connection on the tractor side: Wide-angle without crosses

Accessories on the tractor side: n/a

Type of connection on the machine side: Cross

Accessories on the machine side: n/a

Shaft size: WWE 2280

Length: 1210mm

Power at 540 rpm: 20kW

Power at 1000 rpm: 31kW

Diameter of the cross sleeve on the tractor side - longer part: 22mm

Diameter of the cross sleeve on the tractor side: 24mm

Length of the cross on the tractor side - longer part: 76mm

Length of the cross on the tractor side: 61mm

Diameter of the cross on the machine side: 24mm

Length of the cross on the machine side: 61mm

Outer pipe profile type: 1G

Inner pipe profile type: OvGA

Pipe profile shape: Lemon

Static torque max. : 1600N m

Cover type: SD15

OE reference number: 1800106
