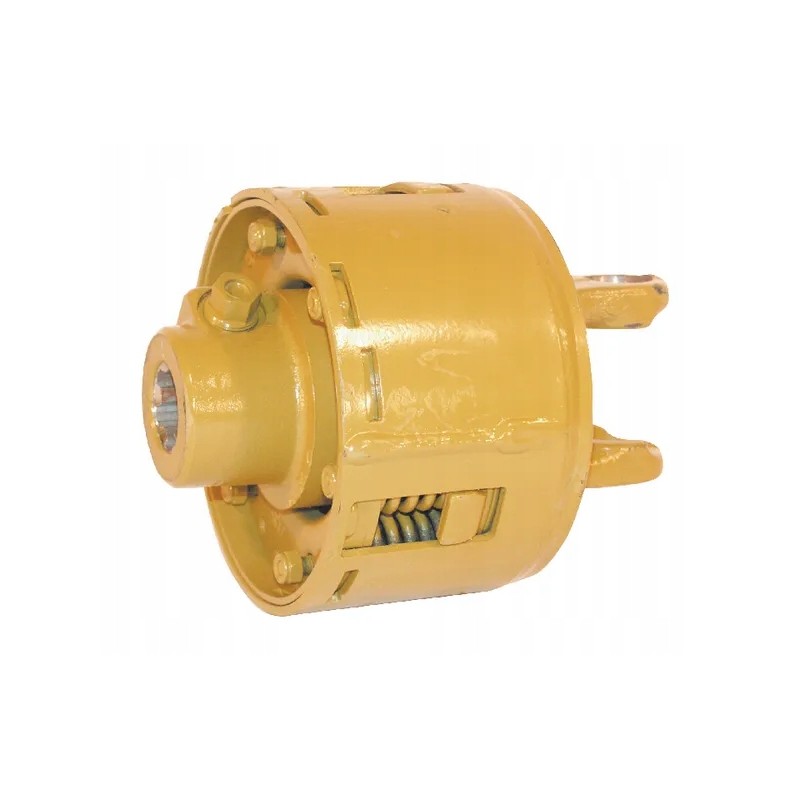

Friction clutch walterscheid k96 4 1 3 8 z6 se

Friction clutch, Walterscheid, K96/4, 1 3/8 Z6, W2400 series

Part number: K. 5610051135

EAN: 8435194019293

Unit: Piece

Specifications:

Uninterrupted force transfer

catches short-term peak loads

max. torque set with a locking ring

Application:

Mowers

power harrows

pick-ups

Features:

Regardless of the direction of rotation

power transmission via friction discs

can be adjusted later

suitable for use as a starting clutch< p>

Technical information: Follow maintenance instructions

Benefits:

Torque retention

jerk-free transition

wide spectrum of applications

Type - code: K96/4

Connection type: Flanged gate valve

Connection external diameter:

1-3 /8cal

1.375cal

Number of connection cutters: 6

Shaft/shaft size: W2400

Maximum rotational speed: 1000 rpm min

Max. static torque: 1350N m

Cross sleeve diameter: 32mm

Cross length: 86mm

DOutside diameter. : 170mm

Length of coupling part: 90mm

Reference number OE: 1170841

Fits machine/vehicle brand: Matsui

Note:

Loosening the clutch

Before first use or after a long period of non-use, check the operation of the friction clutch. Tighten the nuts to relieve the pressure on the friction discs and setting ring. Rotate the clutch to release any stuck friction plates. Unscrew the nuts until the thread runs out.

The coupling is ready for use.

Size: W 2400cal
